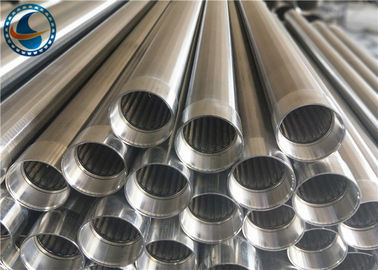

Continuous Slot Fully Welded Wedge Wire Mesh

small.img.alt small.img.alt

Large Image :  Continuous Slot Fully Welded Wedge Wire Mesh

Product Details:
Place of Origin: Hebei,China
Brand Name: HengYuan
Certification: ISO, CIQ, CE, FORM E etc
Model Number: HY-146
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: USD 100/PC
Packaging Details: wooden boxes
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs/month
Detailed Product Description
Name: Wire Wrapped Screen Tube Technique: Electric Galvanized Welded/all Welded
Size: Up To 4000mm Wire: 1.5*2mm;2*3mm
Application: Liquid/solid Filtration Material: Stainless Steel
High Light:

wedge wire screen cylinders


wedge wire mesh

Continuous Slot Fully Welded Stainless Steel Wedge Wire Screen Pipe



Wedge Wire Screen Specification /Wedge Wire Screen Suppliers /Wedge Wire Screen Technology
1). Stainless steel screen (filter water pipe)

The all-welded wire-wound screen is widely used in the oil, gas, and water well sand control industry worldwide, and its position in the water well industry is particularly prominent.

It is the most widely used in various water filtration screens.
The stainless steel screen adopts the world's advanced full-wound welding production process and is welded with a special trapezoidal wire winding on a set of support wires arranged in a circumferential arrangement.

Full-program welding ensures rigorous continuous integrity of the product, resulting in ideal gap size and maximum capacity to withstand high pressures.
2). Product advantages and features:

1. The application of the trapezoidal wire forms a Vee-shaped opening between the slits of the screen. This design is more efficient than other forms of operation, ensuring smooth water filtration.

2. The trapezoidal wire continuous winding forms a continuous high-density uniform gap on the circumferentially arranged support wires, ensuring the open area and non-blocking of the screen tube, and avoiding the accumulation of sediment, in order to improve production efficiency and extend the well The service life is guaranteed.

3. The wire is connected with all the support wires by electric welding, which is durable and has a long working life.

4. According to the actual demand, the vertical arrangement of the support wire and the continuous gap form of the screen tube make the product have higher compression resistance.

5. The superior performance of the product improves the working efficiency and service life of the well, making the product a leader in water filtration equipment.
Continuous Slot Fully Welded Wedge Wire Mesh 0

Material SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
Length Range Up to 6000mm
OD Range 29-1200mm
Slot Range 20 micron to 3000 microns (Tolerance:+-5 micron)
Wedge Wire 0.5x1.5 0.75x1.5 1x2 1.5x2.5 2x3 2x4 3x5
Support Rod




2x3 3*5 3x5




with frame 6*20mm
Note Customized according to the requirement

Our factory Hengyuan hardware netting industry product co., Ltd located in Anping county, Hebei Province, China.
Our mainly products are : stainless steel vee sharped wire / wrap wire , Johnson screen , water well screen / rod based wire wrapped screen , wedge wire screen pipe , reverse wedge wire screen , screen nozzle / water and gas strainer , sieve plate , slot mesh , ARC screen , header and hub laterals & hub radial laterals , pipe base ,crimped wire mesh / stainless steel wire mesh / perforated wire mesh etc.
