Low Carbon Steel Johnson Wedge Wire Screens

Low Carbon Steel Johnson Wedge Wire Screens
Low Carbon Steel Johnson Wedge Wire Screens Low Carbon Steel Johnson Wedge Wire Screens

Large Image :  Low Carbon Steel Johnson Wedge Wire Screens

Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY004
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,64pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Material: Stainless Steel Grade: 304
Slot Size: 0.5mm Length: 1219 Mm
Width: 486
High Light:

wedge wire panels

,

stainless steel wedge wire grates

Low Carbon Steel Woun Johnson Slot Screen Sieve Plate Use In Coal Washer​





Product Description:



Low Carbon Steel Woun Johnson Slot Screen Sieve Plate is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire or a triangular wire or a trapezoidal wire.

The maximum size of the screen can be 3000*4430mm. The frame or support plate can be added to the bottom or the surrounding of the screen according to the customer's needs. It can also make a certain arc according to customer requirements to meet the needs of use.
The surface of the screen is evenly spaced, the solder joint is firm and the permeability is good.



Specification:


Material Stainless steel
Grade 304
 Dimension 1219mm*486mm, request
Slot Size 0.5 mm,request
Width  486mm, up tp 3000mm
Length  1219mm, up to 4430mm
Type  screen plate
Wire size 2.5*4.8 mm
Support rod 1.8*25 mm
Wire shape V shape



Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

                    Length up to 4430mm

SIZES OF THE WIRE AND ROD
WIRE SHAPE V V V V V V
Width(mm) 1.0 1.2 1.5 2.0 2.2 3.0
Height(mm) 2.0 2.0 2.0 3.5 4.5 4.6
ROD SHAPE V V V V V O
Width(mm) 2.0 2.2 3.0 3.0 3.2 Diameter
Height(mm) 3.0 4.5 4.6 5.0 6.0 3.0~3.8



Advantages:

The solder joint is firm: the tips of the two V-shaped wires are welded together, so that the weld is deep and the solder joint is firm and not easy to fall off.
Uniform gap, not easy to block, easy to rinse
Strong structure and deformation
Continuous gaps are more conducive to filtration and screening



Industry:



High Precision Wedge Wire Screen Panels Johnson Wound Screen Plate Use For Coal Washer can be used for filtering and screening of many kinds of media, and it is widely used in multi-industry screening, filtration, dehydration, desilting and so on.

  1.  mining machinery: used for desilting and dewatering of coal preparation plants, coal whasher.
  2.  wheat tooth machine: it is suitable for use in wheat tooth mill, floater and drying stove.
  3.  beer machine: it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.
  4.  food industry: the filtration process can be used for food and beverage.
  5.  aquaculture: used for farming, cleaning up waste residues from animals.
  6.  chemical industry and other: sewage treatment for sugar mills and paper mills; Material filtration, dehydration and the supporting use of all kinds of painting rooms in chemical fertilizer plant; Starch filtration in the food factory; Ventilation for grain storage.



Pictures:

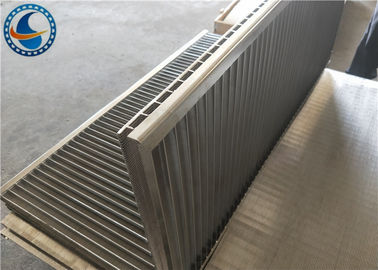

Low Carbon Steel Johnson Wedge Wire Screens 0
