| Material: | Stainless Steel | Grade: | 201, 205, 304,316L, 321 Etc. |
|---|---|---|---|
| Wire Size: | 1*2, 1.2*2, 1.5*2, 2*3, 2*3.5, 3*4.6mm Etc | Support Rod: | 2*3, 3*4.6mm Etc. |
| Slot: | 0.1-100mm | Max Size: | 4000*4000mm |
| High Light: | water well screen pipe,wedge wire screen pipe |
||

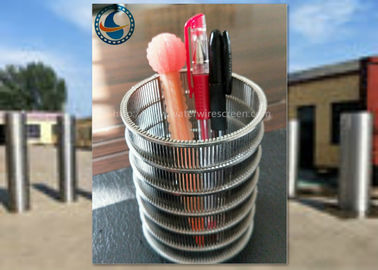

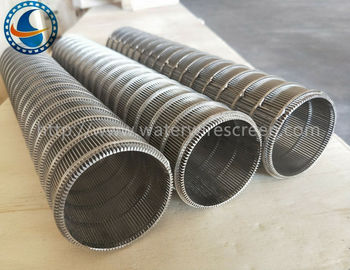

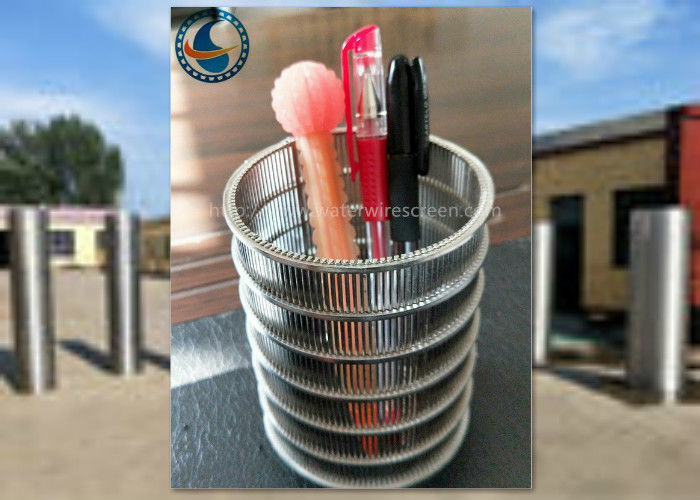

Stainless Steel Reverse Wedge Wire Screen For Wastewater Filter
Stainless Steel Reverse WedgeWire Screen is made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product.
Filter type: From inside to outside. Wire, Inside; Support rod, Outside.
1. Wire is the length of the screen pipe;
2. Support rod is the length of the screen pipe.
The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen.
Stainless Steel Reverse Wedge Wire Screen has easy leakage, wear and corrosion resistance and other characteristics.It is a rigid screening with high strength, stiffness and load capacity, can be made into various shapes of filters.
Widely used in many industries in the screening, filtering, dehydration, mud removing and other operations.
| Material | SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length | Up to 4000mm | ||||||
| Inner Diameter | 60-1300mm | ||||||
| Slot / Gap | 25 micron to 2000 micron (Tolerance:+-5 micron) | ||||||
| Wedge Wire(mm) | 1x2 | 1.2x2 | 1.5x2 | 2x3 | 2x3.5 | 3x4.6 | 3x5 |
|
Support Rod (mm) |
2x3 |
2x3 |
2x3 |
2x3 |
3*4.6 3*5 3*6 |
3x4.6 3x5 3x6 |
3x5 3x6 |
| Ends | With Welded rings, Flange etc | ||||||
| Filter Type | From inside to outside | ||||||
| Reinforce | With or without | ||||||
| Note | All sizes are all customized, according to your requirement | ||||||
