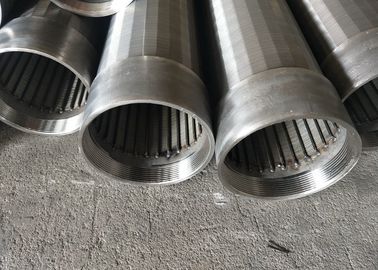

Stainless Steel Wire Wrapped Screen With High Mechanical Strength

Stainless Steel Wire Wrapped Screen With High Mechanical Strength
Stainless Steel Wire Wrapped Screen With High Mechanical Strength Stainless Steel Wire Wrapped Screen With High Mechanical Strength

Large Image :  Stainless Steel Wire Wrapped Screen With High Mechanical Strength

Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY004
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,64pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Material: Stainless Steel Grade: 316L
Slot Size: 0.25mm Diameter: 10 "
Length: 5800mm End Connection: Welded Rings
Package: Woden Box,Container
High Light:

water well sand screen

,

oil well screen

0.25mm Slot Size Wire Wrapped Screen 316L Grade High Mechanical Load Capacity





Product Description:



Wire Wrap Johnson screen is welded by V wire and support rod.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development. The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.

.

Specification:


Material Stainless steel
Grade 304
O.D 273 mm
Size 10 "
Slot size 1.0 mm
Length 5.8m
End connection Welded rings
Wire size 118 #
Support rod 140 #
Wire shape V shape



Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

O.D.: 4, 6, 8, 10, 12 intch and as request.

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Length: 50mm-6000mm

End Connection: welded rings or thread couplings ( male / female )

Specification of the wrap wire:1*2mm, 2*3mm, 2.2*3.5mm, 3*4.6mm and so on.

Specification of the rod:2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on.

Special specification can be made according to your need.



Advantages:



Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance



Industry:



water well

water supply systems

Refining & petrochemical



Stainless Steel Wire Wrapped Screen With High Mechanical Strength 0
