| Material: | Stainless Steel V Wire | Technique: | Welding |
|---|---|---|---|
| Feature: | Non-clogging | Application: | Filtration |
| High Light: | johnson screen mesh,johnson screen pipe |
||

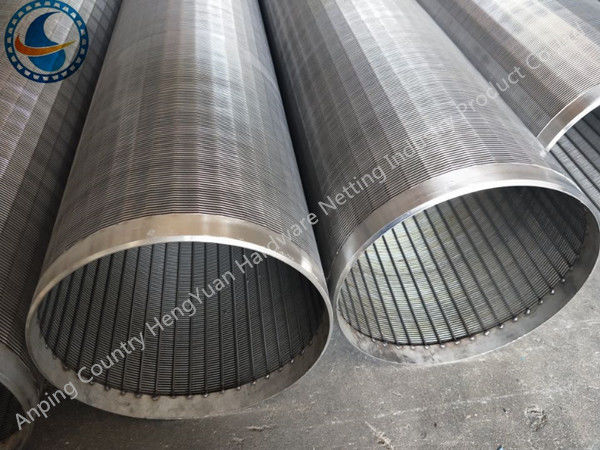

251mm Stainless Steel Wedge Johnson Wire Screen Tube , Water Well Slot Pipe
Material:stainless steel v wire /galvanized steel wire
Technique:welding
Features: The surface of the wire wound filter core is smooth, without edges and corners, reducing friction and increasing effective filtration area.
The filtering direction can be adjusted according to the requirements of customers, from the inside out or the direction, to meet the customer's design needs.
The gap of the wire filter core is uniform, and the error is 0.005mm, which can meet the higher precision requirements.
The special V type silk structure is not only difficult to block, but also can be back washed.
In order to adapt to the special environment such as high pressure and high temperature, we can make reinforced wire filter core.
Application:water well screen drilling pipe,liquid filtration,oil filtration etc.
| Material | stainless steel wire 304,302,304L,316,316L or galvanized steel wire |
| OD | 1 Iinch,3 inch,4 inch,6inch,8 inch,10 inch,12 inch,14 inch,16 inch,18 inch,20 inch |
| the slot | 0.1mm-45mm |
| the wire | 2.0mm*3.0mm ,3.0mm*4.6mm,3.0mm*5.0mm |
| the rods | 3.8mm/22,3.8mm/32,3.8mm/48,3.8mm/50 |
| Styles of connection | welding ring,threaded male /female coupling |
| Standard length | 1000mm-5850mm |
--------------------------------------------------------------------------------------------------------------------------
Our factory Hengyuan hardware netting industry product co., Ltd located in Anping country, Hebei Province, China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial lateralsetc.
