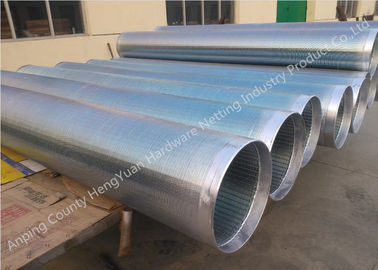

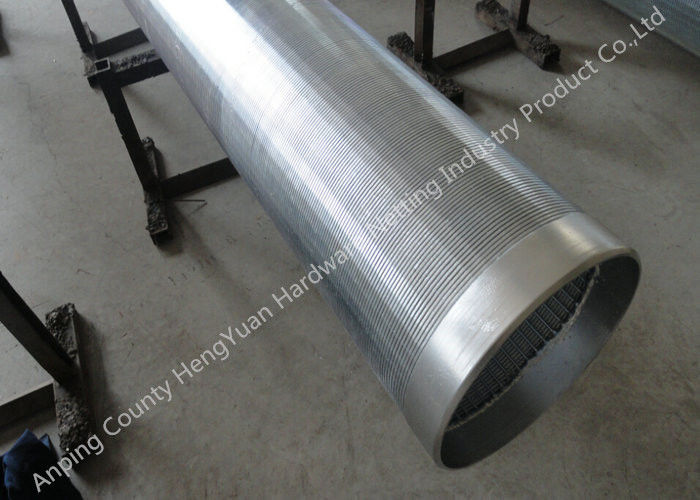

Stainless Steel Johnson V Wire Screen

Stainless Steel Johnson V Wire Screen
Stainless Steel Johnson V Wire Screen Stainless Steel Johnson V Wire Screen Stainless Steel Johnson V Wire Screen

Large Image :  Stainless Steel Johnson V Wire Screen

Product Details:
Place of Origin: Hebei,China
Brand Name: HengYuan
Certification: ISO
Model Number: HY-91
Payment & Shipping Terms:
Minimum Order Quantity: 10 UNITS
Price: USD 200/units
Packaging Details: wooden box or customized
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 units per month
Detailed Product Description
Brand Name: HengYuan Material: Stainless Steel V Wire
Technique: Welding Feature: Non-clogging
Application: Filtration Certification: ISO
High Light:

johnson screen mesh

,

johnson screen pipe

Stainless Steel Filter Wedge Johnson Wire Screen , Deep Well Water Pipes





Stainless Steel Filter Wedge Johnson Wire Screen Introduction:



Many water wells penetrate unconsolidated material and require installation of casing and a well screen to prevent inflow of sediment and possible wellbore collapse.



The space around the casing is usually sealed with grouting material of either neat cement or bentonite clay to prevent contamination by water draining from the surface downward around the outside of the casing.



Well screens (filtering devices) are installed in the water bearing formations, allowing water to move into the well, while keeping out gravel and sand.



The most popular filtering devices for water wells are continuous slot (wire-wrapped) screens and perforated liners.

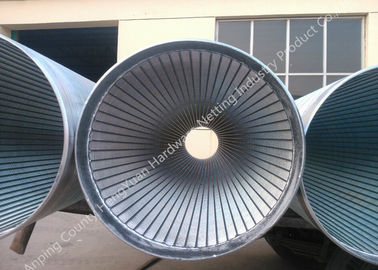

Continuous slot screens made of V shape wire wrapped around a series of vertical rods. This allows the most inlet area and higher productions rates.



Stainless Steel Filter Wedge Johnson Wire Screen Parameter selection table :



Material stainless steel wire 304,302,304L,316,316L or galvanized steel wire
OD 2 Iinch,3 inch,4 inch,6inch,8 inch,10 inch,12 inch,14 inch,16 inch,18 inch,20 inch
Slot 0.1mm-45mm (0.5mm, 0.75mm, 1.0mm in usual)
Wire 2.0mm*3.5mm ,3.0mm*4.6mm,3.0mm*5.0mm etc
Support rods 3.8mm/22,3.8mm/32,3.8mm/48,3.8mm/50
Styles of connection welding ring,threaded male /female coupling
Standard length

2900mm or 5800mm to fit container



Johnson Wire Screen Also Be Named :



v wire water well screens , wire wrapped screens pipe , Johnson Screen , welded wedge wire screen , reversed slot screen , continuous slot pre-pack , water filter , screen cylinders , stainless steel slot tube , reverse rolled screen , strainer pipe , continuous slot wire wrap well screens , pipe base well screen , ribbed-type wire wrapped screen , stainless steel or low carbon galvanized or mild steel wire screen , wire wrapped liner , woven wedge wire screen , slot wire screen tube , well screen , strainer screens , well point screens , oil screen tube , etc


Replace Johnson V Water Wire Screen Pipe



Stainless Steel Johnson V Wire Screen 0



Contact me :hengyuan1@aphywire.com    Skype: songcc0209     WhatsApp/ Wechat: +86-13903185920

--------------------------------------------------------------------------------------------------------------------------

Our factory Hengyuan hardware netting industry product co., Ltd located in Anping country, Hebei Province, China.

Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen etc.
