Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Grade: | 304, 304L, 316L |
|---|---|---|---|
| Slot Size: | 1.0mm | Diameter: | 10" |
| Length: | 5800mm | End Connection: | Welded Rings |
| Wrap Wire: | 3.0*4.6mm | Support Rod: | ø3.8mm |
| High Light: | johnson screen pipe,johnson well screen |
||

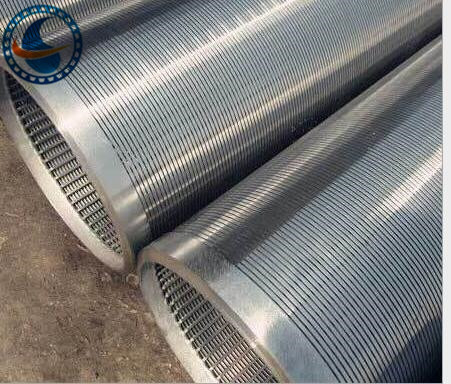

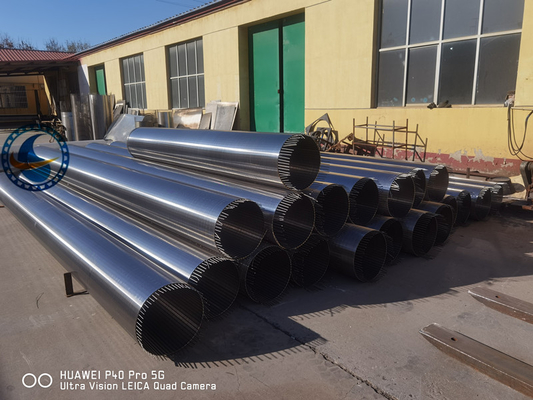

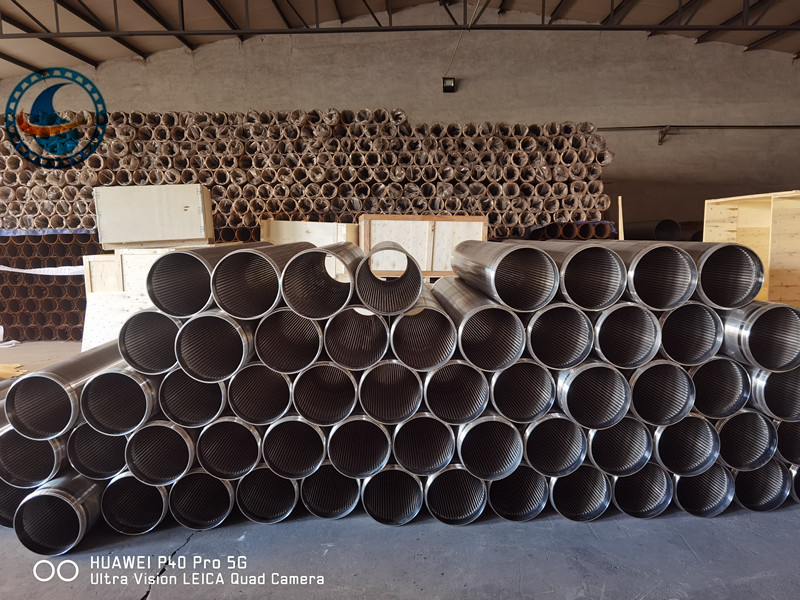

Johnson Wire Screen , Stainless Steel Water Well Screen ,Slotted Screen
273mm Diameter Deep Well Water Well Screen 3 Meters Length With Welded Rings
Product Description:
Deep Well Water Well Screen is continuous slot screen ,designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.
Both the inner and outer screens shall be constructed of Vee-shaped wire continuously wrapped around an array of equally spaced support rods of the same material.
Specification:
| Material | stainless steel |
| Grade | 304 |
| O.D | 273 mm |
| Size | 10-3/4 " |
| Length | 5.8 or 2.9 meters |
| Solt size | 1.0mm |
| End connection | Welded Rings |
| Wire size | 3.0*4.6mm |
| Support rod | ø3.8mm |
| Wire shape | Vee shaped |
Use:
Deep Well Water Well Screen is a kind of filtered water tubing with the perforation.
It can use with the deep well pump, dive the water pump, also may use in the water-treating equipment, water supply, the environmental protection, Polluted water and sundries separating, the petroleum industry, crude oil refining, mineral processing, foodstuff processing, and so on the organic solution recycling filters.
