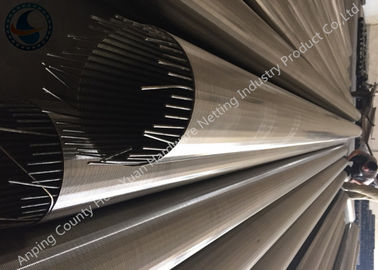

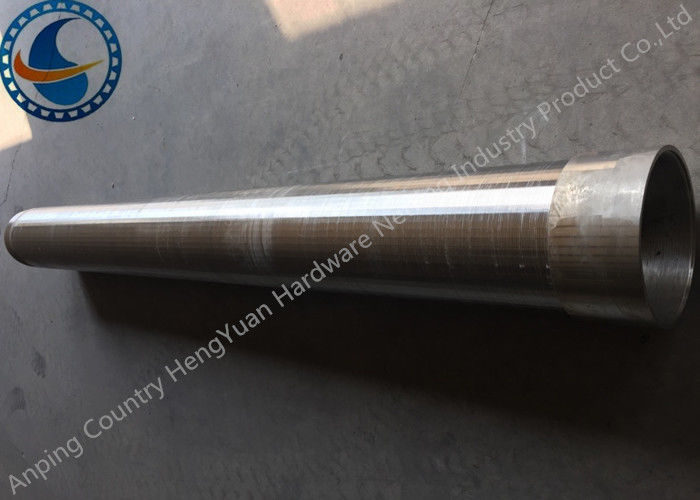

Full Welding Johnson Vee Wire Screen

Full Welding Johnson Vee Wire Screen
Full Welding Johnson Vee Wire Screen Full Welding Johnson Vee Wire Screen

Large Image :  Full Welding Johnson Vee Wire Screen

Product Details:
Place of Origin: Hebei,China
Brand Name: HengYuan
Certification: ISO9001-2008
Model Number: HY-124
Payment & Shipping Terms:
Minimum Order Quantity: 10units
Price: USD 20-100/pc
Packaging Details: wooden boxes or customized
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000pcs/month
Detailed Product Description
Features: Non-clogging ,anti-corrosion Product Name: Johnson V Wire Screen
Technique: Full Welding Application: Liquid/gas/solid Filtration
Material: Stainless Steel /galvanized OD: 29-1200mm
Certification: ISO9001-2008 Package: Wooden Boxes
High Light:

johnson screen mesh

,

johnson screen pipe

China Johnson V Wire Screen Stainless Steel Screen Pipes Round Shape Support Rod




1. Johnson screen information:
Johnson screen consist of V-shape profile wire and the longitudinal support rods
Each intersecting point of these wires is fusion welded
So Johnson screen pipe has sturdy constriction and good mechanical property
V-shape section plane can avoid blockage, and make sure of the unimpeded water
Continuous slot have a bigger open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so water well screen pipe can filter sand better
Meanwhile, the slot size can be changed according to the real condition of the construction.



More details:

Materials:SS 304, 304L, 316, 316L or carbon steel

Johnson screens round rods are available in diameters ranging from 0.125-inch (3.175mm) to 0.500-inch (12.7mm)

Johnson screen Vee-wire profile wires range in widths from 0.020-inch (0.508mm) to 0.195-inch (4.953mm) and heights ranging from 0.040-inch (1.016mm) to 0.363-inch (9.220mm), other wire shapes also available

 Common sizes :

Material stainless steel wire 304,302,304L,316,316L or galvanized steel wire
OD 1 Iinch,3 inch,4 inch,6inch,8 inch,10 inch,12 inch,14 inch,16 inch,18 inch,20 inch
the slot 0.1mm-45mm
the wire 2.0mm*3.0mm ,3.0mm*4.6mm,3.0mm*5.0mm
the rods 3.8mm/22,3.8mm/32,3.8mm/48,3.8mm/50
Styles of connection welding ring,threaded male /female coupling
Standard length 1000mm-5850mm





Full Welding Johnson Vee Wire Screen 0






When you send to us an inquiry please including materials, slots, outer diameter & length.Quantity



Contact me: hengyuan3@aphywire.com Skype:cherryhan09

-------------------------------------------------------------------------------------------------------------------------------------------

Our factory Hengyuan hardware netting industry product co., Ltd located in Anping county, Hebei Province, China.

Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals,pipe base ,crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
