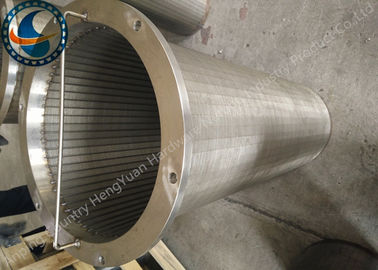

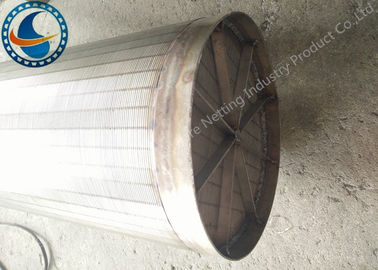

Closed Up Drum Screen Filter , Wedge Wire Sieve Filters High Efficiency

Closed Up Drum Screen Filter , Wedge Wire Sieve Filters High Efficiency
Closed Up Drum Screen Filter , Wedge Wire Sieve Filters High Efficiency Closed Up Drum Screen Filter , Wedge Wire Sieve Filters High Efficiency

Large Image :  Closed Up Drum Screen Filter , Wedge Wire Sieve Filters High Efficiency

Product Details:
Place of Origin: Hebei,China
Brand Name: HengYuan
Certification: ISO
Model Number: HY-53
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiated price
Packaging Details: wooden boxes
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs /month
Detailed Product Description
Features: Non-clogging Name: Closed Up Rotary Screen Drum
Material: Low Carbon Galvanized ,stainless Steel Etc. Length: 10-3000mm
Diameter: 29-1200mm Technique: Point Welding
Application: Filteration Package: Wooden Boxes
High Light:

rotating drum screen

,

rotary sand screen



Closed Up Rotary Screen Drum,SS 304 Wedge Wire Screen Drum Filteration





We supply a range of internally fed Rotary Screen Drum.



Our screens consist of a wedge wire drum inside which is an internal feed tank.


Flow passes into the internal feed tank and overflows the weir.



The internal feed tank has the function of controlling velocities and reducing the force of the flow onto the wedgewire drum.



The effluent water flows on to the screen face and we aim to dewater between the “3” and “6” o’clock positions.



The effluent waters pass through the element under gravity, trapping the solids on the screen face whilst the cleaned liquor passes through the screen element.



The collected solids are discharged via the screen drum mouth.



For over 25 years, we have been supplying Rotary Screens.



Most industrial applications have apertures of 0.5 mm to 1.0 mm:



  • Paper mills
  • Abattoirs
  • Food industry
  •

In the Sewage Industry, these are more commonly at 3.0 mm



This table only lists a few typical profile wire / support rod combinations.





Diameter(mm) Length(mm) Slot(mm) Type of end connection

600,900,1000,

1200,1500,2000

1000,2000,3000

1.0,3.0,5.0,

10,20,100

Welded rings,flange
Explanation

Besides above specification of screen pipe, we also can act according to the customer’s request .







Closed Up Drum Screen Filter , Wedge Wire Sieve Filters High Efficiency 0





Pls feel free to contact me if you have any questions.

We can make any sizes according to your drawing.
