Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Grade: | 304 |
|---|---|---|---|
| Slot Size: | 1.0 Mm | Diameter: | 650 Mm |
| Length: | 1100 Mm | Components: | None, As The Customer's Requirement |
| Package: | Woden Box,Container | ||
| High Light: | rotating drum screen,wire cylinder basket |
||
Stainless Steel Johnson Wedge Slot Screen Basket To Food Filter Equipment
Johnson screen basket Product Description:
Johnson screen basket is made by Johnson screen mesh through reverse welding.
There are two type of the screen cylinder, the inside circle wire ( circle gap ) and the inside vertical wire
( vertical gap ) . It can be madeby customer's requirement.The liquid flow from inside to outside. The revolutionary reverse rolled slotted wedge wire screens is extremely rugged and more clog-resistant than conventional strainer elements that use perforated plate or wire mesh screens.The reverse rolled slotted wedge wire screens provide continuous debris removal from fluid piping systems that demand full time uninterrupted flow and can operate through a wide range of positive operating pressure and solids loading with effective debris removal and back washing across the entire pressure range.
Johnson screen basket Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.
| SIZES OF THE WIRE AND ROD | ||||||
| Wire | ||||||
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.3 | 3.0 | |
| Height(mm) | 2.0 | 2.2 | 2.5 | 3.5 | 4.6 | |
| Rod | Round wire | |||||
| Width(mm) | 2.3 | 2.3 | 3.0 | 3.7 | 3.3 | Diameter |
| Height(mm) | 2.7 | 3.5 | 4.6 | 5.6 | 6.3 | 0.25-0.5m |
Johnson screen basket Specification:
| Material | Stainless steel |
| Grade | 316L |
| I.D | 150-2000 mm, 650 MM |
| Slot Size | 0.1 - 30 mm, 0.75 mm |
| Components | Flange, handle |
| Length | 300-3000mm, 1100 mm, |
| Filter type | From inside to outside |
| Wire size | 2*3.5 mm |
| Support rod | 3*4.6 mm |
| Wire shape | V shape |
Johnson screen basket Characteristic:
Johnson screen basket Industry:
Food and drink industry beverage and food products, urban water treatment, fruit and vegetable dehydration, water treatment including drinking and photographic use as well river water, sea water, waste dewatering treatment, used for centrifuge Industry, plating solutions, oils and distillates, industrial liquids of every kind, bright quenching and cutting fluids, chemical and petroleum industry, solid liquid separation, livestock manure dehydration.
Special specification can be made according to your need.

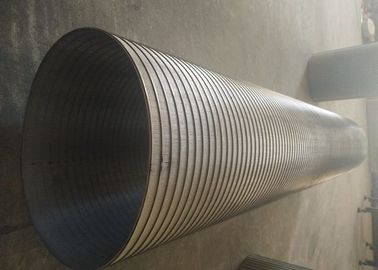

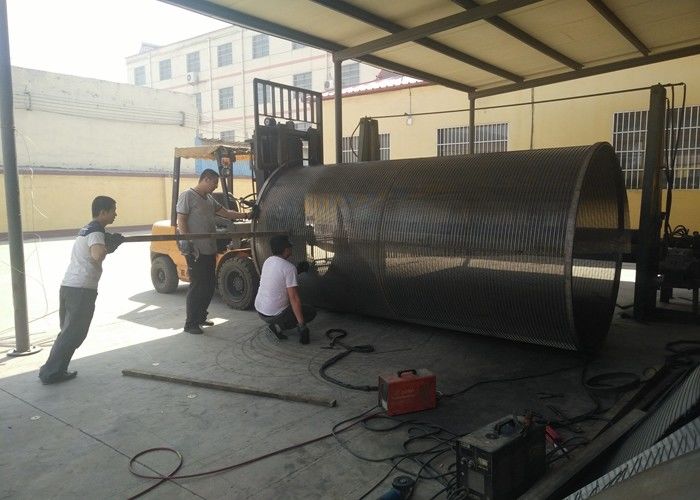

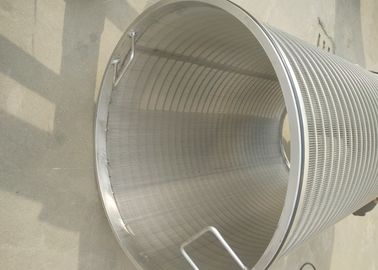

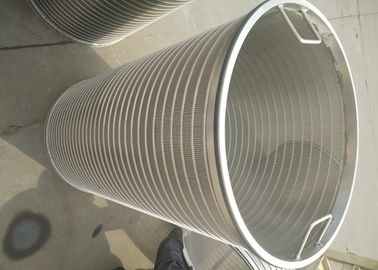

Johnson screen basket Pictures:
Package:
