High Temperature Resistant Rotary Drum Screen Economical For Centrifuge Industry

High Temperature Resistant Rotary Drum Screen Economical For Centrifuge Industry
High Temperature Resistant Rotary Drum Screen Economical For Centrifuge Industry High Temperature Resistant Rotary Drum Screen Economical For Centrifuge Industry

Large Image :  High Temperature Resistant Rotary Drum Screen Economical For Centrifuge Industry

Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY0010
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: according to the specifications
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Material: Stainless Steel Grade: 316L
Slot Size: 0.6 Mm Diameter: 280 Mm
Length: 980 Mm Components: Flange, Handle, As The Customer's Requirement
Package: Woden Box,Container
High Light:

rotating drum screen

,

wire cylinder basket

Johnson Screen Basket Cylinder Stainless Steel Handle To Water Filter Treatment



Product Description:

Johnson screen drum is made by Johnson screen mesh through reverse welding.There are two type of the screen cylinder, the inside circle wire ( circle gap ) and the inside vertical wire ( vertical gap ) . It can be madeby customer's requirement.The liquid flow from inside to outside. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.The drum screen is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams.


Specification:

Material Stainless steel
Grade 316L
 I.D 150-2000 mm, 280 MM
Slot Size 0.1 - 30 mm,  0.6 mm
Components Flange, handle
Length 300-3000mm, 980 mm,
Filter type  From inside to outside
Wire size 2*3.5 mm
Support rod 3*4.6 mm
Wire shape V shape


Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
Slot type: Inside vertical wire and slot. inside circle wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.


SIZES OF THE WIRE AND ROD
Wedge Wire
Width(mm) 1.0 1.2 1.5 2.3 3.0
Height(mm) 2.0 2.2 2.5 3.5 4.6
Support Rod           Round wire
Width(mm) 2.3 2.3 3.0 3.7 3.3 Diameter
Height(mm) 2.7 3.5 4.6 5.6 6.3 0.25-0.5m


High Temperature Resistant Rotary Drum Screen Economical For Centrifuge Industry 0


Special specification can be made according to your need.

Characteristic:



The screen basket cylinder was made by rods and wrapped wires, of which the rods can be V Shaped profile or wedged profile, the wrapped wire is V shape, so the inside gap is smaller than outside. The filter inside and the back flush outside.

The revolutionary reverse rolled slotted wedge wire screens is extremely rugged and more clog-resistant than conventional strainer elements that use perforated plate or wire mesh screens.The reverse rolled slotted wedge wire screens provide continuous debris removal from fluid piping systems that demand full time uninterrupted flow and can operate through a wide range of positive operating pressure and solids loading with effective debris removal and back washing across the entire pressure range.



Advantages:



  1. The Screen drum was made by rods and wrapped wires, of which the rods can be V Shaped profile or wedged profile, the wrapped wire is V shaped.
  2. With precise slot size, high filtration accuracy is assured
  3. Firm structure, heat and corrosion resistance, very good mechanical performance
  4. Long life span, safety and reliability, can be used as the filter of various medium.


Industry:

Food and drink industry beverage and food products, urban water treatment, fruit and vegetable dehydration, water treatment including drinking and photographic use as well river water, sea water, waste dewatering treatment, used for centrifuge Industry, plating solutions, oils and distillates, industrial liquids of every kind, bright quenching and cutting fluids, chemical and petroleum industry, solid liquid separation, livestock manure dehydration.

Pictures:

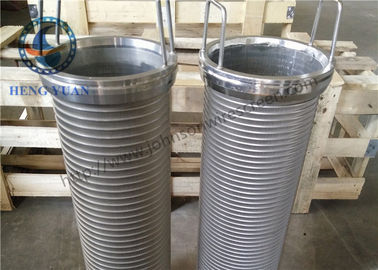

High Temperature Resistant Rotary Drum Screen Economical For Centrifuge Industry 1

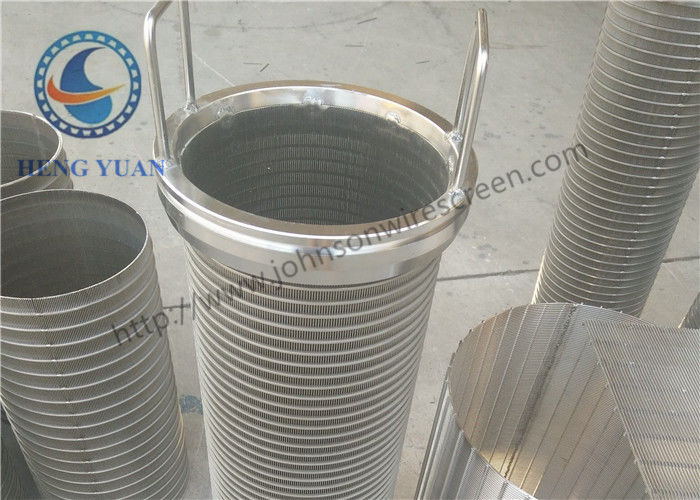

High Temperature Resistant Rotary Drum Screen Economical For Centrifuge Industry 2

Package:



High Temperature Resistant Rotary Drum Screen Economical For Centrifuge Industry 3High Temperature Resistant Rotary Drum Screen Economical For Centrifuge Industry 4
