Product Details:
Payment & Shipping Terms:
|
| Brand Name: | HengYuan | Technique: | Welding |
|---|---|---|---|
| Material: | Stainless Steel V Wire | Feature: | Non-clogging |
| Application: | Filtration | Certification: | ISO |
| High Light: | rotating drum screen,rotary sand screen |
||

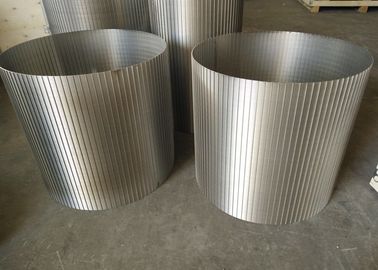

Stainless Steel Rotary Drum Screen Filter Wedge Wire Basket Different V Wire Baskets
Features and Benefits of V Profile Wedge Wire Baskets Elements:
The welded wedge wire screen baskets provide more sufficient opening than the perforated metal baskets.
It is stronger and can bear heavy loading pressure than the woven mesh filter baskets.
The wedge wire basket can work with both benefits of the perforated and woven mesh filter elements and avoid the shortcomings.
It is stronger, has more aperture and pressure differential levels can be achieved by variety of the slotting. Also it is economic.
Specification:
Triangle wire size:
| Triangle wire | Width | 1.5mm | 2.2mm | 2.8mm | 3.1mm | 3.4mm | 5.0mm |
| height | 4.0mm | 4.5mm | 5.0mm | 6.0mm | 7.5mm | 10.0mm | |
| Slot | 0.10mm-10mm | ||||||
Support rod size:
| Support rod | Width | 1.0mm | 1.5mm | 1.8mm | 2.7mm | 3.2mm | 3.6mm |
| height | 2.0mm | 2.5mm | 3.0mm | 4.2mm | 5.3mm | 5.7mm | |
| Slot | 0.2mm-5mm | ||||||
