Special Specification Rotary Screen Drum Wedge Wire Slot Screen FIter For Dewatering Systems

Special Specification Rotary Screen Drum Wedge Wire Slot Screen FIter For Dewatering Systems
Special Specification Rotary Screen Drum Wedge Wire Slot Screen FIter For Dewatering Systems Special Specification Rotary Screen Drum Wedge Wire Slot Screen FIter For Dewatering Systems Special Specification Rotary Screen Drum Wedge Wire Slot Screen FIter For Dewatering Systems

Large Image :  Special Specification Rotary Screen Drum Wedge Wire Slot Screen FIter For Dewatering Systems

Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY0010
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: according to the specifications
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Material: Stainless Steel Grade: 304
Slot Size: 1.0 Mm Diameter: 520 Mm
Length: 600 Mm Components: None, As The Customer's Requirement
Package: Woden Box,Container
High Light:

wire cylinder basket

,

rotary sand screen

Stainless steel Reverse Wedge Wire Slot Screen FIter FITO Filter Cylinder Basket


Product Description:

Stainless steel Reverse Wedge Wire Slot Screen FIter FITO Filter Cylinder Basket is made by Johnson screen mesh through reverse welding.

From inside to outside (FITO):



Whereas,the liquid flow from inside to outside.It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.


Stainless steel Reverse Wedge Wire Slot Screen FIter FITO Filter Cylinder Basket Specification:



Material Stainless steel
Grade 316L
 I.D 150-1000 mm, 400 MM
Slot Size 0.1 - 30 mm,  0.75 mm
Components None
Length 300-3000mm, 500 mm,
Filter type  From inside to outside
Wire size 2*3.5 mm
Support rod 3*4.6 mm
Wire shape V shape


Stainless steel Reverse Wedge Wire Slot Screen FIter FITO Filter Cylinder Basket Regular Specifications:

Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.



SIZES OF THE WIRE AND ROD
Wire
Width(mm) 1.0 1.2 1.5 2.3 3.0
Height(mm) 2.0 2.2 2.5 3.5 4.6
Rod           Round wire
Width(mm) 2.3 2.3 3.0 3.7 3.3 Diameter
Height(mm) 2.7 3.5 4.6 5.6 6.3 0.25-0.5m


Special Specification Rotary Screen Drum Wedge Wire Slot Screen FIter For Dewatering Systems 0

Special specification can be made according to your need.


Stainless steel Reverse Wedge Wire Slot Screen FIter FITO Filter Cylinder Basket Benefits:



Uniform gap: The gap between each screen is fixed. The CNC machine can make the gap accurately.
The solder joint is firm: the V-shaped wire tip is welded to the tip, which makes the solder joint more firm and difficult to remove.
Not easy to block: V-shaped wire has a unique shape, so that each slit is small on one side and small on the side of the small gap. It is not easy to block and can be backwashed.



Stainless steel Reverse Wedge Wire Slot Screen FIter FITO Filter Cylinder Basket Industry:



● Trommel screens with internal feed

● Systems with an internal rotor or screw

● Dewatering systems

● Baskets

● Automatic filters

Fecal treatment



Stainless steel Reverse Wedge Wire Slot Screen FIter FITO Filter Cylinder Basket Pictures:

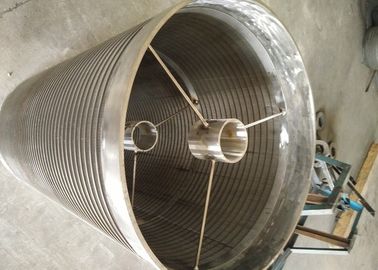

Special Specification Rotary Screen Drum Wedge Wire Slot Screen FIter For Dewatering Systems 1

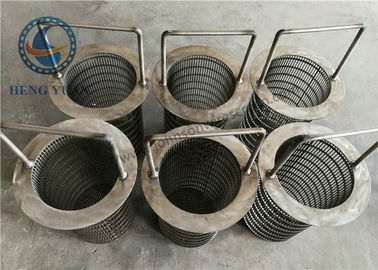

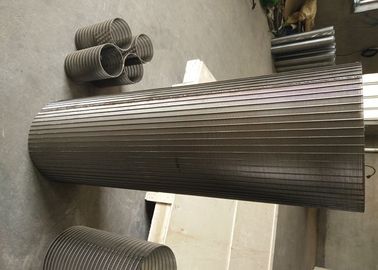

 Special Specification Rotary Screen Drum Wedge Wire Slot Screen FIter For Dewatering Systems 2Special Specification Rotary Screen Drum Wedge Wire Slot Screen FIter For Dewatering Systems 3
Package:

Special Specification Rotary Screen Drum Wedge Wire Slot Screen FIter For Dewatering Systems 4
