Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Grade: | 304 |
|---|---|---|---|
| Slot Size: | 1.0 Mm | Diameter: | 520 Mm |
| Length: | 600 Mm | Components: | None, As The Customer's Requirement |
| Package: | Woden Box,Container | ||
| High Light: | wire cylinder basket,rotary sand screen |
||
Professional Rotary Reverse Bake Flush Johnson Slot Screen Drum
Product Description:

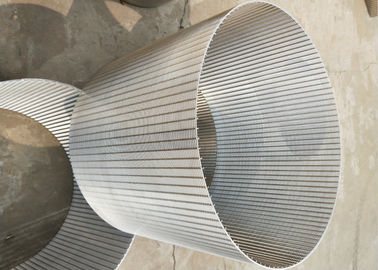

Professional Rotary Reverse Johnson Slot Screen Drum is made by Johnson screen mesh through reverse welding.
The key point of producing the first-class seiving mesh is the welding process. And based on that, in 2001, we created our automatic welding equipment, which was testified by the practice, the seiving mesh processed have the highest screening efficiency, the strongest seismic tensile ability, need the least maintenance and get the longest life span.
Specification:
| Material | Stainless steel |
| Grade | 316L |
| I.D | 150-1000 mm, 400 MM |
| Slot Size | 0.1 - 30 mm, 0.75 mm |
| Components | None |
| Length | 300-3000mm, 500 mm, |
| Filter type | From inside to outside |
| Wire size | 2*3.5 mm |
| Support rod | 3*4.6 mm |
| Wire shape | V shape |
Regular Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
I.D.: 150 - 1000 MM
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.
| SIZES OF THE WIRE AND ROD | ||||||
| Wire | ||||||
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.3 | 3.0 | |
| Height(mm) | 2.0 | 2.2 | 2.5 | 3.5 | 4.6 | |
| Rod | Round wire | |||||
| Width(mm) | 2.3 | 2.3 | 3.0 | 3.7 | 3.3 | Diameter |
| Height(mm) | 2.7 | 3.5 | 4.6 | 5.6 | 6.3 | 0.25-0.5m |
Special specification can be made according to your need.
Benefits:
Industry:

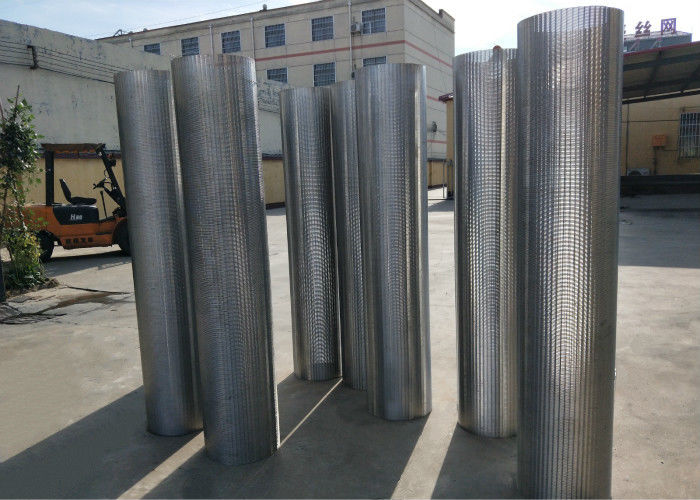

Pictures:
Package:
