Non Clogging Johnson Wedge Wire Screen Nozzle Customization Acceptable

Non Clogging Johnson Wedge Wire Screen Nozzle Customization Acceptable
Non Clogging Johnson Wedge Wire Screen Nozzle Customization Acceptable Non Clogging Johnson Wedge Wire Screen Nozzle Customization Acceptable

Large Image :  Non Clogging Johnson Wedge Wire Screen Nozzle Customization Acceptable

Product Details:
Place of Origin: Hebei,China
Brand Name: HengYuan
Certification: ISO
Model Number: HY0130
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: negotiated price
Packaging Details: wooden boxes
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 pcs /month
Detailed Product Description
Name: V-wire Water Filter Nozzle Material: Stainless 304,321,316L,titanium Steel Etc.
Type: Threaded Or Flange Slot Size: 0.05-1mm
Structure: Single Nozzle ,double Nozzle Application: Industry ,food And Beverage
High Light:

filter nozzles for water treatment

,

wedge wire strainer

Stainless Steel Johnson Wedge Wire Screen Nozzle Customize For Client From Indonesia

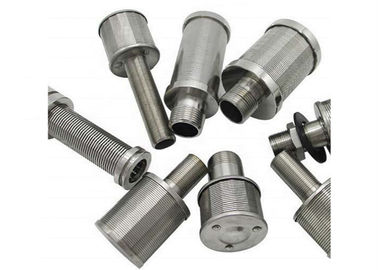

Wedge wire nozzle is manufactured from stainless steel material or other alloy material.



The wedge wire nozzle features non-clogging, high filtering efficiency and economical.

It has a wide range of applications in water treatment applications.

The different wedge wire sizes and slot sizes can suit different class filtration. Continuous slot design make it high efficiency and long service life.


Type of wedge wire nozzle

According to different applications, the wedge wire nozzle can be divided into two main types, you can choose them according to your requirements.

  • Single wedge wire nozzle.
  • Double wedge wire nozzle.


No.



Type



Ton



Slot

Opening



Size

0.2-0.25mm slot opening Area of through-flow mm2 (reference)
D L1 L M
1 TYS45-1-C 0.5 0.2-0.5 45 45 95 24 550-690
2 TYS53-2-B 1 0.2-0.5 53 45 100 24 680-710
3 TYS53-2-C 1.5 0.2-0.5 53 50 110 32 800-920
4 TYS57-3-B 2 0.2-0.5 57 45 110 32 660-790
5 TYS70-4-B 3 0.2-0.5 70 55 120 32 905-1100









Our factory Hengyuan hardware netting industry product co.,ltd located in Anping country ,Hebei Province,China.



Our mainly products are :stainless steel vee sharped wire /wrap wire,johnson screeen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals etc.
