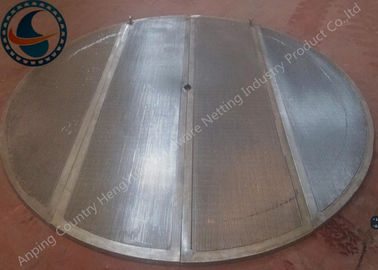

Heavy Duty Wedge Wire Screen Panels For Malt Kiln Flooring Raw Material

Heavy Duty Wedge Wire Screen Panels For Malt Kiln Flooring Raw Material
Heavy Duty Wedge Wire Screen Panels For Malt Kiln Flooring Raw Material Heavy Duty Wedge Wire Screen Panels For Malt Kiln Flooring Raw Material Heavy Duty Wedge Wire Screen Panels For Malt Kiln Flooring Raw Material

Large Image :  Heavy Duty Wedge Wire Screen Panels For Malt Kiln Flooring Raw Material

Product Details:
Place of Origin: hebei,China
Brand Name: HengYuan
Certification: ISO
Model Number: HY-65
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation Price
Packaging Details: wooden Boxes ,Container
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 pcs /month
Detailed Product Description
Features: Non-clogging Name: Stainless Steel Wedge Wire Screen Panels
Material: Low Carbon Galvanized,stainless Steel Slot Size: 0.1-20mm
Length: 3000 Mm Max Width: 3000mm Max
Technique: Point Welding Application: Filteration
Package: Wooden Boxes ,container
High Light:

wedge wire sheets

,

stainless steel wedge wire grates

Stainless Steel Wedge Wire Screen Panels,Stainless steel sieve plate



stainless steel wedge wire circular sieve plate can be constructed using rectangular support rods or round support rods.

They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.
stainless steel wedge wire circular sieve plate can be designed to optimize the open area, strength and wear life for each application.

The sieve plates are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures.

Advantages of stainless steel wedge wire circular sieve plate

-  flatness to within tight tolerances
-  no weakening of the welds, because of flattening (and no stress corrosion problems as a result)
-  accurate distance between support profiles
-  possibility of different support wires in one screen
-  possibility of variable spacing between support wires in one screen

Usage of stainless steel wedge wire circular sieve plate

vibrating screen decking,cross flow sieves, surface water intake screen, mineral processing, fish diversion screen panel, hatchery screens, food processing, and flooring for malt kiln,germination, and grain drying.






Specification

(mm)


Profile wire size:


Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70

Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30


Specification

(mm)



Support rods sie:


Width(mm): 2.30 3.00 3.30 3.70

Height(mm): 2.70 3.60 4.70 5.60 6.30

Round: From 2.50mm to 6.0mm

Note: other wires and rods can be customed according to your requests


Slot size:

(mm)


0.10, 0.15, 0.20, 0.25, 0.30... 6.00mm also

achieved upon request.

Material:

Low carton, low carton galvanized steel (LCG), stainless steel (304,316 etc.)

Length:


Lengths up to 4 meters.

Max size: 4000*4000mm

:
