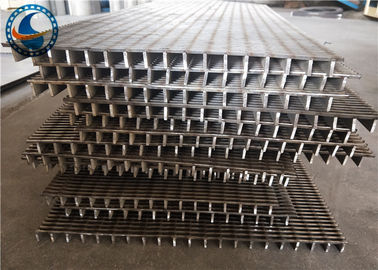

SS 304 Welded Wedge Wire Screen Panels Wear Resistant With High Strength

SS 304 Welded Wedge Wire Screen Panels Wear Resistant With High Strength
SS 304 Welded Wedge Wire Screen Panels Wear Resistant With High Strength SS 304 Welded Wedge Wire Screen Panels Wear Resistant With High Strength

Large Image :  SS 304 Welded Wedge Wire Screen Panels Wear Resistant With High Strength

Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY004
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,64pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Material: Stainless Steel Grade: 304
Slot Size: 0.7mm Dimension: Diameter 1.3 M, Up To 3m, Request
Package: Woden Box,Container
High Light:

wedge wire sheets

,

stainless steel wedge wire grates

Strong Structure Wedge Wire Mesh . Welded Johnson Screen Sieve Plate





Product Description:

Strong Structure Wedge Wire Mesh . Welded Johnson Screen Sieve Plate is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire ,a triangular wire, rectangle or a trapezoidal wire. There is a certain distance between each support bar too . The filter surface is smooth, the gap is uniform, and it is not easy to block.



Specification:


Material Stainless steel
Grade 304
 Dimension 3 * 3 m, request
Slot Size 0.7 mm
Width  up tp 3000mm
Length  up to 3150mm
Type  screen plate
Wire size 2*3.5 mm
Support rod 3*4.6 mm
Wire shape V shape



Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

                    Length up to 3150mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Special specification can be made according to your need.



Advantages:



Wedge wire and support rod adopt the international advanced continuity resistance welding technology automation mine screen mesh welding production equipment, sieve seam even, stable welding quality, wear-resisting, long service life and has a high strength, stiffness and bearing capacity, can make various shapes of the rigid screening filter device. And the screen seam is v - shaped, easy to leak, not easy to plug.



Industry:



 Mining machinery:

used for desilting and dewatering of coal preparation plants.

 Wheat tooth machine:

it is suitable for use in wheat tooth mill, floater and drying stove.

Beer machine:

it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.

 Food industry:

the filtration process can be used for food and beverage.

 Aquaculture:

used for farming, cleaning up waste residues from animals.
