Product Details:
Payment & Shipping Terms:
|
| Features: | Non-clogging | Name: | Wedge Wire Screen Pipe |
|---|---|---|---|
| Material: | Low Carbon Galvanized Or Stainless Steel | Length: | 2.9m ,5.8m |
| Diameter: | 114mm, 168mm, 219mm, 273mm | Technique: | Full Welded |
| Application: | Environmental Protection | Package: | Wooden Pallet,container |
| Slot: | 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm | End Connection: | Welded Rings Or Male/female Threaded |
| High Light: | johnson wedge wire screens,johnson stainless steel screen |
||

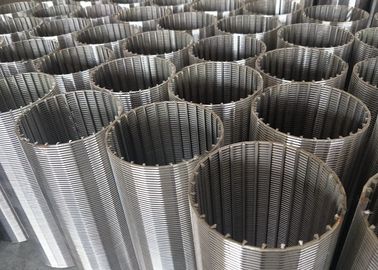

Full Welded Johnson Wedge Wire Screens Downhole Slotted Tube Large Open Area Simple Structure
Our factory Hengyuan mainly products are:Vee shaped wedge wire screen,johnson screeen , water well screen / rod based wire wrapped screen , wedge wire screen pipe , reverse wedge wire screen , screen nozzle / water and gas strainer , sieve plate , slot mesh , ARC screen , header and hub laterals & hub radial laterals , pipe base , stainless steel wire mesh etc.
Advantages of Veee Shaped Wedge wire screen pipe
This Vee Shaped Wedge Wire Screen is composed of rod strips and V shaped wires through manufacturing on specialized welding machine . The rib strips and V shaped wires will be welded by resistance welding , has enough welding strength , equally slot gap , high corrosion resistance , large filter area, good permeability, simple structure.
Specification:
| Material | Stainless Steel or Low Carbon Galvanized steel |
| Diameter | 3-1/2”, 4-1/2”, 6-5/8”, 8-5/8”, 10-3/4”, 12-3/4” etc. |
| Slot | 0.5mm, 0.63mm, 0.75, 1.0mm, From 0.05-100 mm |
| Length | 2.9m and 5.8m to fit container. Upto 6meters |
| End connection | Welded rings, Male/female threaded |
| Note | Parameters can be customized as per clients' requirements |
V-Slot Feature:
The Continuous slot screens are made of Vee Shape wire or wedge shape wire around an internal array
of longitudinal support rods. Each joint point of these wire is fusion welded, the V or wedge shaped profile wire wraps around the support rods over the full length of the screen creating a continuous slot opening. Therefore the screen allows water or oil to enter the well freely in ample quantities while keeps the majority of sand and gravel out of the well at the same time.
Common flow styles of different screens
Advantage:
Non clogging:“V” shaped profile wire, avoids clogging, is self-cleaning and ensures an uninterrupted flow. Sand grains make only two point contact and do not wedge in the screen’s inwardly enlarging slot.
Large open area: This allows more water to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.
High Strength: It takes stainless steel as main raw material, then is welded at high temperature, which guarantee high strength to bear big water pressure, hereby it has long life span.
If you have any inquires please feel free to contact us!
We can make any sizes according to your drawing.
Hope we can work together soon.
