Product Details:
Payment & Shipping Terms:
|
| Features: | Non-clogging | Name: | Sealing Bottom Johnson Vee Wire Screen |
|---|---|---|---|
| Material: | Stainless Steel,low Carbon Galvanized | Length: | 5.8 M |
| Diameter: | 3“ 4“ 6“ 8” 10 ”12 ” 14“ 16” | Technique: | Point Welding |
| Application: | Filteration | Package: | Wooden Boxes,container |
| High Light: | water well screen,water wire screen |
||

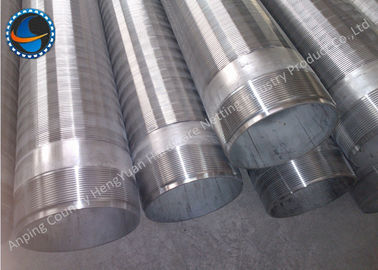

Sealing Bottom Johnson Vee Wire Screen 3“ 4“ 6“ 8” 10 ”12 ” 14“ 16” Diameter
Small diameter well screen (sand point) between 25 and 65 mm diameter.
SS 304 well screen (continuous wire wounded) of diameter 254mm , V shaped slotted type . Open area not less than 20%. Slot width 1mm maximum.
Large Diameter Stainless Steel 304 Wellscreen , Fitted with Well Casing and thread protectors.
Construction
Slot = .020, Material = 304 SS
Screen length = 5.8M
Top Fitting = Male thread, NPI,NPT
Bottom Fitting = Female thread,NPI, NPT
| SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Weight (ton) |
Wire size (mm) |
RODS (mm) |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/54 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/54 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/54 |
Product Features:
1. Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2. V-type profile of the structure to avoid clogging and ensure smooth flow.
3. Continuous long-term effective use of the pore.
4. Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
5. Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.
Advantages:
1. Screens with high open area are more suitable for the construction of high-quality water wells and gas wells.
2. Low cost operation.
3. Reduce the abrasion of the pump.
4. Extend the life span of wells, low-carbon, Galvanized or stainless steel construction.
If you have any enquires please feel free to contact us !
Our factory Hengyuan hardware netting industry product co.,ltd located in Anping country ,Hebei Province,China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,johnson screeen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals,pipe base ,crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
