| Features: | Non-clogging | Name: | Vee Wire Screen Systerm Water Treatment |
|---|---|---|---|
| Material: | Low Carbon Galvanized ,stainless Steel | Technique: | Point Welding |
| Application: | Filteration | Package: | Wooden Boxes ,container |
| High Light: | water well screen,slotted screen pipe |
||

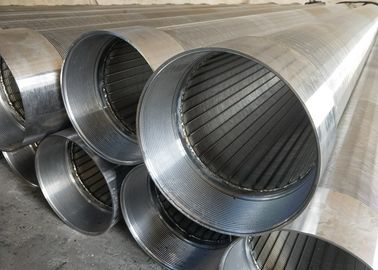

Water Treatment Stainless Steel 304 Well Screen , Continuous Slot Screen
Continuous Slot Screen Introduction:
Continuous Slot Screen offers a wide variety of screens for particle separation, dewatering, classifying and related mineral processing applications. Every intersection of surface wire and internal support rods is welded producing a very strong screen. Our flat screens can be fabricated with very small wires and rods for critical, fine-screening operations or with much larger wires and rods for heavy-duty operations.
Our welded wire screens use a surface wire that is vee-shaped in profile, creating slots that enlarge inwardly. This means particles make only a two-point contact in the slots and will not become lodged.
Benefits of Continuous Slot Screen are:
1. Great strength
2. Higher capacity
3. Reduced cost
4. Higher level of adaptability
5. Long wear/service life
6. Reduced maintenance
7. Greater resistance to corrosive conditions and high temperatures and pressures
8. Greater resistance to stresses of installation and cleaning
9. High efficiency fluid-solid separation
| SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Weight (ton) |
Wire size (mm) |
RODS (mm) |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/54 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/54 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/54 |
Slot (mm): 0.1,0.25,0.50,0.75,1.00,1.50,2.00,3.00 also achieved upon customer request.
