Product Details:
Payment & Shipping Terms:
|
| Features: | Non-clogging | Name: | Oil/gas Filter Sand Control Screens |
|---|---|---|---|
| Technique: | Point Welding | Application: | Filteration |
| Package: | Wooden Boxes ,container | ||
| High Light: | water well sand screen,johnson stainless steel well screens |
||

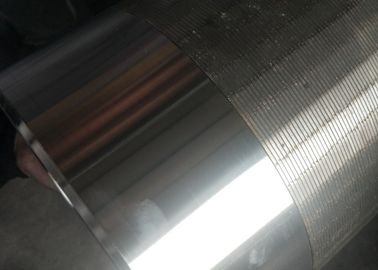

Oil / Gas Filter Sand Control Screens High Precision Corrosion Resistance
Sand Control Screens Characteristics:
Sand Control Screens pipe consists of V-wire and the longitudinal support rods. Each intersecting point of these wires is fusion welded, so it has study constriction and good mechanical property.
The V-shape section plane can avoid blockage, and make sure of the unimpeded water. The consecutive slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so water well screen can filter sand better.
The flange is also customer designed for your requirement.
Usual size we make:
Material: Stainless steel 304 304L 316 316L stainless steel and low carbon,can be made according to the customers requirement.
Diameter:8inch
Slot:0.5mm, 0.75mm, 1.0mm, 1.5mm, 2.0mm
Length:1-6meters
Supply capacity:7500meters per month
Meanwhile,the specification of products can change according to the real condition of the earth.
If you are interested in our water well screen pipe, please contact us and for more information.
| SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Weight (ton) |
Wire size (mm) |
RODS (mm) |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 4 | 114.3 | 0.040 | 3 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
| 6 | 168.3 | 0.040 | 3 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8 | 219.1 | 0.010 | 3 | 399 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 8 | 219.1 | 0.020 | 3 | 370 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 8 | 219.1 | 0.040 | 3 | 323 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 10 | 273.1 | 0.010 | 3 | 206 | 11 | 3.0*5.0 | 3.8mm/54 |
| 10 | 273.1 | 0.020 | 3 | 191 | 11 | 3.0*5.0 | 3.8mm/54 |
| 10 | 273.1 | 0.040 | 3 | 167 | 11 | 3.0*5.0 | 3.8mm/54 |
