Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Grade: | 304 |
|---|---|---|---|
| Slot Size: | 0.5 Mm | Diameter: | 8 " |
| Length: | 5800mm | End Connection: | Welded Rings |
| Package: | Woden Box,Container | ||
| High Light: | water well sand screen,slotted screen pipe |
||
40mm O.D Stainless Steel Wedge Wire Screen , Sand Control Screens
Sand Control Screens Product Description:
Sand Control Screens is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.
Sand Control Screens Specification:
| Material | Stainless steel |
| Grade | 304 |
| O.D | 40 mm |
| Size | 1-1/2" |
| Slot size | 0.1mm |
| Length | 2.7 m |
| End connection | None |
| Wire size | 63 # |
| Support rod | 93 # |
| Wire shape | V shape |
Sand Control Screens Regular Specifications:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Sand Control Screens Characteristic:
OEM service:
Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.
Custom range
Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.
Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.
Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.
Length: 2.9 M, 5.85 M. Up to 6 M.
Connection form: groove connection/weld ring connection or thread connection.
Application:
1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal
2. Water injection, bi-modal sand, carbonates, thin pay
3. Horizontal, vertical , deviated oil and gas and water wells

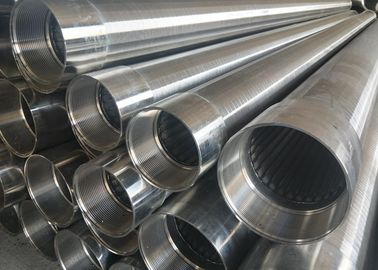

Pictures:
Package:
