Cylindrical Wedge Wire Screen Pipe With High Filtration Precision

Cylindrical  Wedge Wire Screen Pipe With High Filtration Precision
Cylindrical  Wedge Wire Screen Pipe With High Filtration Precision Cylindrical  Wedge Wire Screen Pipe With High Filtration Precision Cylindrical  Wedge Wire Screen Pipe With High Filtration Precision Cylindrical  Wedge Wire Screen Pipe With High Filtration Precision

Large Image :  Cylindrical Wedge Wire Screen Pipe With High Filtration Precision

Product Details:
Place of Origin: Hengshui City,Hebe Provincei,China
Brand Name: HengYuan
Certification: ISO,CO,FORM E,CIQ, etc
Model Number: HY-45
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiated price
Packaging Details: wooden box
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1500 pcs /month
Detailed Product Description
Features: Non-clogging Name: Quality Welding Wedge Wire Mesh
Material: Low Carbon Galvanized ,stainless Steel Length: 10-4000mm
Diameter: 29-1300mm Technique: Point Welding
Application: Filteration Package: Wooden Box
High Light:

wedge wire screen cylinders

,

welded wedge wire screen

Quality Welding Wedge Wire Mesh,wedge slot screen wedge wire filter





Wedge wire screen also be named Vee-Wire screen pipe.Continuous slot Vee-wire screen tube ,Wire wrapped screen ,Wire wound screen ,water filter .It is made up of Vee-shaped wrapped wire and round rod in each intersection welded together .Accurate slot and high filtration precision.



Material : low carbon wire ,stainless steel wire.

Diameter : 29-1200 mm ,can make as customers request

Length :10-3000mm

End connection : male/female threaded couplings ,welded rings/plain beveled ends ,flange ,closed end plate,same slot sieve plate.



Wedge wire screen is composed of support bars and profile wire,support bar can be round wire,triangle wire or trapezoid wire. profile wire can be triangle wire.

Wedge Wire screen product can be custom designed to suit the specific requirements of the customer and to enable a relatively low cost and high performance solution for the screening application.

Wedge Wire cylinders are usually used as rotary screens, such as nozzles,in-line strainers, water intake screens, water well screens

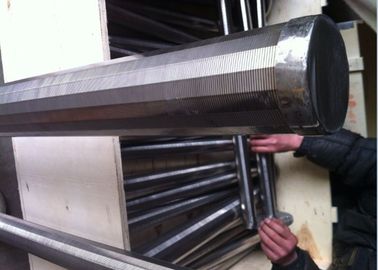

Cylindrical  Wedge Wire Screen Pipe With High Filtration Precision 0



  • Wide range of wedge wire screens with slot widths from 0.05mm (50 microns) and open areas from 2% through to 40.0% provides solutions for many filtering and separation applications.



  • One of the important features of wedge wire screen for filtering and separation is the continuous aperture or “slot”, which automatically provides a large open area guaranteeing a very low pressure drop through the filtering surface with a low tendency to blind or clog.



  • “Slot widths” are very precise, but more so with looped wedge wire. This type being used for starch screens for the extraction of corn starch



  • Due to the wires being wound close together and the large number of welds, wedge wire screens are inherently strong and able to provide extended life in such areas as industrial waste treatment.



  • The continuous aperture and triangular wire section ensures there are only two particle contact points, which minimizes the risk of blinding and clogging.



  • Segmental wedge wire screen floors can be designed for individual requirements in terms of finish, number of segments and diameters for the needs of the brewing and sugar industry.



Outside Diameter (mm) Length (mm) Slot (mm) Styles of connection(mm)

29,38,42,57,63,76,89,108,150,

168,320,600,900,985,1287 etc

1000,2000,3000 0.05,0.1,0.25,0.5,1.0 welded rings,male/female threaded coupling ,flange,closed up, etc.
Explanation

Diameter:

29-1300mm

Length:

100-4000mm

Material:

Low carbon galvanized,stainless steel





If you have any enquires please feel free to contact us !



Hengyuan factory located in Anping country , Hebei Province , China.

Our mainly products are : stainless steel vee sharped wire / wrap wire,johnson screeen , water well screen / rod based wire wrapped screen , wedge wire screen pipe , reverse wedge wire screen,screen nozzle / water and gas strainer ,sieve plate ,slot mesh ,ARC screen ,header and hub laterals & hub radial laterals , stainless steel wire mesh etc .
