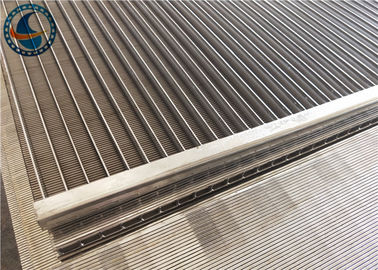

Durable High Accuracy Parabolic Screen Filter OEM / ODM Acceptable

Durable High Accuracy Parabolic Screen Filter OEM / ODM Acceptable
Durable High Accuracy Parabolic Screen Filter OEM / ODM Acceptable Durable High Accuracy Parabolic Screen Filter OEM / ODM Acceptable

Large Image :  Durable High Accuracy Parabolic Screen Filter OEM / ODM Acceptable

Product Details:
Place of Origin: Anping, Hebei, China
Brand Name: Hengyuan
Certification: ISO, CIQ,SGS, CE
Model Number: 2000*1000mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 square meters
Packaging Details: Wooden boxes
Delivery Time: 7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 square meters per day
Detailed Product Description
Material: Stainless Steel 304, 316L Slot: 0.05-50mm
Frame: Stainless Steel Frame Or Carbon Steel Frame Shape: Arc Screen
Use: Waste Water Treatment Size: 3000mm(wire)*3000mm(support Rod)
High Light:

wedge wire panels

,

stainless steel wedge wire grates

Durable High Accuracy Parabolic Screen Filter OEM / ODM Acceptable 2000*1000mm





Stainless Steel Industrial Arc Screen



Material:  Low Carbon,Stainless Steel 304,316L etc.
Slot(mm): 0.05-50mm, also achieved upon customers request
Size: 3000mm(wire)*3000mm(support rod),also can make as customers request

Shape :Arc screen

      Use: Waste water treatment



SIZES OF THE WIRE AND ROD
WIRE SHAPE V V V V V V
Width(mm) 1.0 1.2 1.5 2.0 2.2 3.0
Height(mm) 2.0 2.0 2.0 3.5 4.5 4.6
ROD SHAPE V V V V V O
Width(mm) 2.0 2.2 3.0 3.0 3.2 Diameter
Height(mm) 3.0 4.5 4.6 5.0 6.0 3.0~3.8



Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Dimension: width up to 3000 mm

Length up to 3150mm

Specification of the wrap wire:1 * 2 mm, 2 * 3 mm, 2.2 * 3.5 mm, 3 * 4.6 mm and so on.

Specification of the rod: 2 * 3 mm, 3 * 4.6 mm, 3 * 5 mm, 4 * 4 mm ( square shape ) and so on.

Special specification can be made according to your need.



Advantages:



Wedge wire and support rod adopt the international advanced continuity resistance welding technology automation mine screen mesh welding production equipment, sieve seam even, stable welding quality, wear-resisting, long service life and has a high strength, stiffness and bearing capacity, can make various shapes of the rigid screening filter device. And the screen seam is v - shaped, easy to leak, not easy to plug.



Industry:



1: Mining machinery:



used for desilting and dewatering of coal preparation plants.



2: Wheat tooth machine:



it is suitable for use in wheat tooth mill, floater and drying stove.



3: Beer machine:



it is suitable for use in the brewery filter tank, with the advantages of high opening rate and long service life.



4: Food industry:



the filtration process can be used for food and beverage.



5: Aquaculture:



used for farming, cleaning up waste residues from animals.



Durable High Accuracy Parabolic Screen Filter OEM / ODM Acceptable 0Durable High Accuracy Parabolic Screen Filter OEM / ODM Acceptable 1
