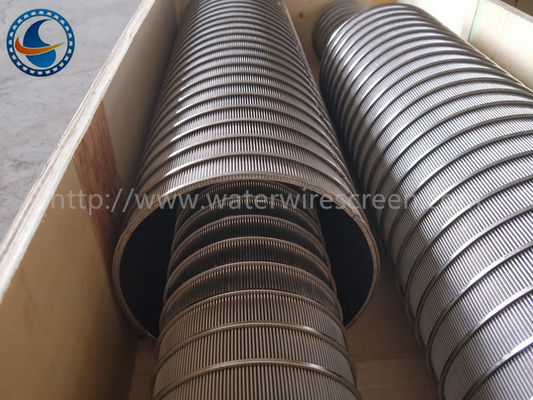

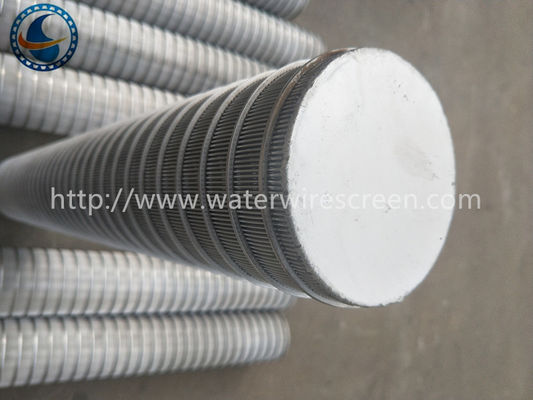

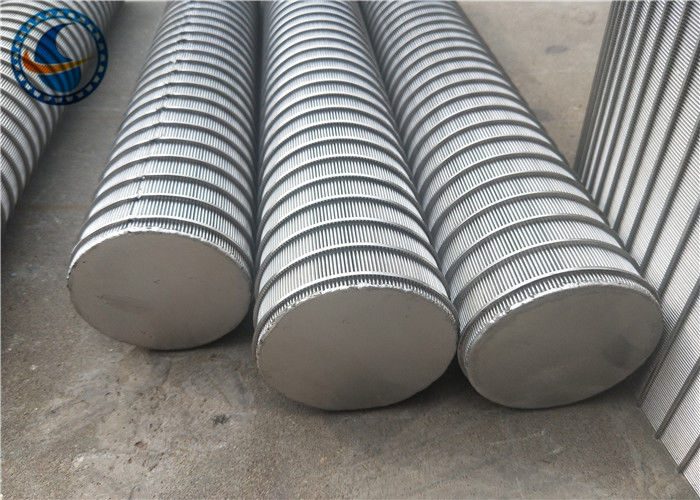

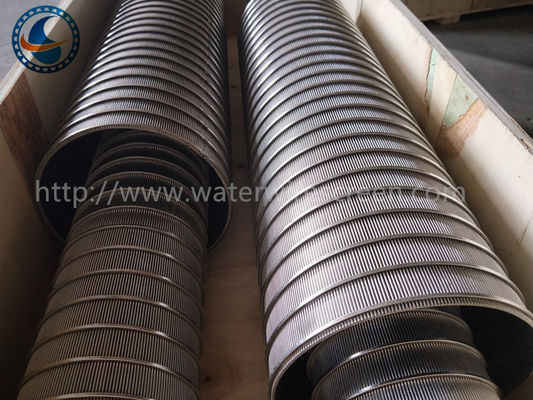

Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends

Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends
Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends

Large Image :  Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends

Product Details:
Place of Origin: Hengshui City,Hebei Province
Brand Name: Hengyuan
Certification: CE,ISO,CIQ,CO,FORM E,CCPIT etc.
Model Number: ID:30-1300mm
Payment & Shipping Terms:
Minimum Order Quantity: 2 Pieces
Price: USD 50-200 per piece
Packaging Details: Wooden box
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: More than 20 PCS per day
Detailed Product Description
Grade: SS 304, 316L, 321, Duplex, Hastelloy Wire Size: 1*2, 1.2*2, 1.5*2, 2*3, 2*3.5, 3*4.6mm Etc
Support Rod: 1.5*2mm, 2*3mm, 3*4.6mm Etc. Slot: 0.05-100mm
Max Size: 4000*4000mm End Connection: Blind Plate End
Length: As Your Requiremens Inner Diameter: 29-1300mm
High Light:

water well screen pipe

,

water well pipe

Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends



Wedge Wire Screen Introduction :



Material:stainless steel 201, 205, 304, 316L, 321 etc

Diameter:29-1300mm

Slot: 0.05-100mm

Thickness: 4-10mm



Wedge Wire Screen Normal Sizes

Material SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc
Length Up to 4000mm
Inner Diameter 60-1300mm
Slot / Gap 25 micron to 2000 micron (Tolerance:+-5 micron)
Wedge Wire(mm) 1x2 1.2x2 1.5x2 2x3 2x3.5 3x4.6 3x5

Support Rod

(mm)

2x3 2x3 2x3 2x3

3*4.6

3*5

3*6

3x4.6

3x5

3x6

3x5

3x6

Ends With Welded rings, Flange etc
Filter Type From inside to outside
Reinforce With or without
Note All sizes are all customized, according to your requirement





























Reverse Wedge Wire Screen Application:

Architecture & Construction

Food & Beverage Screens

OEM Screen Components

Refining & Petrochemical

Waste Water Treatment

Coal & Mine

Chemical industry

Pharmacy

Food and beverage

Metallurgy

Coal mining

Environmental protectio



Stainless Steel Reverse Wedge Wire Screen is made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product.



Reverse Wedge Wire Screen Filter type:



From inside to outside. Wire, Inside; Support rod, Outside.

1. Wire is the length of the screen pipe;

2. Support rod is the length of the screen pipe.



The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen.

Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends 0

Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends 1

Stainless Steel 304 Reverse Wedge Wire Screen With Blind Plate Ends 2
