Product Details:
Payment & Shipping Terms:
|
| Grade: | SS 321, Duplex, Hastelloy, Etc | Wire Size: | 1*2, 1.2*2, 1.5*2, 2*3, 2*3.5, 3*4.6mm Etc |
|---|---|---|---|
| Support Rod: | 2*3, 3*4.6mm Etc. | Slot: | 0.1-100mm |
| Max Size: | 4000*4000mm | End Connection: | Plain Beveled Ends, Flanged Or Threaded Couplings |
| Length: | As Your Requiremens | Inner Diameter: | 60-1300mm |
| High Light: | wedge wire screen pipe,water well pipe |
||

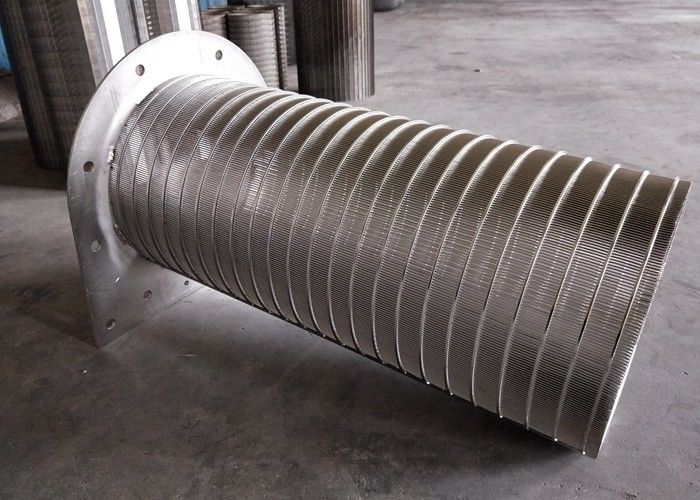

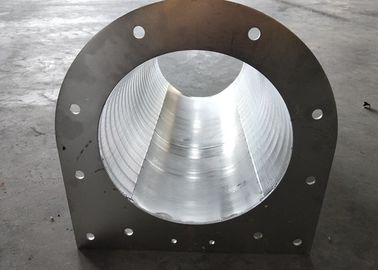

Reverse Wedge Wire Screen,Inverted Wire With Low Maintenance Export To Singapore
6 "Reverse slotted wedge wire screen tube
The wedge mesh filter core is welded with stainless steel wedged wire. The filtration precision is 30-800 mu. The wedge-shaped wire mesh screen is welded by the stainless steel wedged wire and the support strip, mainly including filter plate, filter basket, filter core and so on.
Reverse slotted wedge wire screen tube features:
1, high mechanical strength, able to withstand greater pressure difference;
2, uniform filter gap, can form a more uniform filter cake, conducive to regenerative regenerative;
3, wedged filter gap, can improve the ability to regenerate backwashing;
4, pressure, temperature resistance, resistance to aging, corrosion resistance, can be suitable for various fluids
5, metal wedges. Metal mesh filter core is used as a filter element, which has the advantages of high mechanical strength, high-pressure tolerance and easy to wash and regenerate. The near two-dimensional filter has no dead angle of particle accumulation, and the wedge gap can gather backflushing energy when backwashing and the effect of backwashing are good. The shape of the wire has a great influence on the performance of the metal sieve, and the metal screen with the wedge section has the best performance.
We are manufacturers, located in China's silkscreen Township - Anping, we have a superior geographical environment, all kinds of silk screen products we can provide to customers. The products are processed mainly according to the customer's requirements (main products are stainless steel filter core, filter cartridge, filter and other wire mesh deep processing products). You can provide us with drawings or samples, also can describe the product, we draw you.
Reverse slotted wedge wire screen tube advantages:
1, manufacturer professional production, high-quality filter materials, quality and low price; 2, professional product design and development team; independent research and development of slotted special-shaped edge machine, the filter for any shape of the one-off operation.
| certification: | custom-made | Brand: | HengYuan |
| Properties: | long service life | use: | screening |
| Type: | wire wound filter | Material: | Metal wire mesh |
| Scope of application: | filter applicable | object | liquid |
| Working temperature: | 10-800 C | maximum working pressure difference: | 10-100MPa |
| Filtering accuracy: | 1-200 mu | ||
| Raw water pressure: | 0.2-10KG/c | filter area: | 100-1000mm |
| Model: | a variety of | specifications: | a variety of |
| Trade mark: | NO | packing: | by sea |
| Output: | 10000 |
Stainless Steel Reverse WedgeWire Screen is made with high-quality stainless steel wire strip processing into a trapezoidal section, winding through automated production equipment, on the support bar, and then processed by cutting, welding and other processes to form a screening product.
Reverse Wedge Wire Screen Filter type:
From inside to outside. Wire, Inside; Support rod, Outside.
1. Wire is the length of the screen pipe;
2. Support rod is the length of the screen pipe.
The cross-section of the screen strip is trapezoidal, the slots at lower part is wider than that of upper part of the screen.
Reverse Wedge Wire Screen Application:
Architecture & Construction
Food & Beverage Screens
OEM Screen Components
Refining & Petrochemical
Waste Water Treatment
Water Well & Oil well
Coal & Mine
Chemical industry
Pharmacy
Food and beverage
Metallurgy
Coal mining
Environmental protectio
Reverse Wedge Wire Screen Basic Parameters :
| Material | SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length | Up to 4000mm | ||||||
| Inner Diameter | 60-1300mm | ||||||
| Slot / Gap | 25 micron to 2000 micron (Tolerance:+-5 micron) | ||||||
| Wedge Wire(mm) | 1x2 | 1.2x2 | 1.5x2 | 2x3 | 2x3.5 | 3x4.6 | 3x5 |
|
Support Rod (mm) |
2x3 | 2x3 | 2x3 | 2x3 |
3*4.6 3*5 3*6 |
3x4.6 3x5 3x6 |
3x5 3x6 |
| Ends | With Welded rings, Flange etc | ||||||
| Filter Type | From inside to outside | ||||||
| Reinforce | With or without | ||||||
| Note | All sizes are all customized, according to your requirement | ||||||
