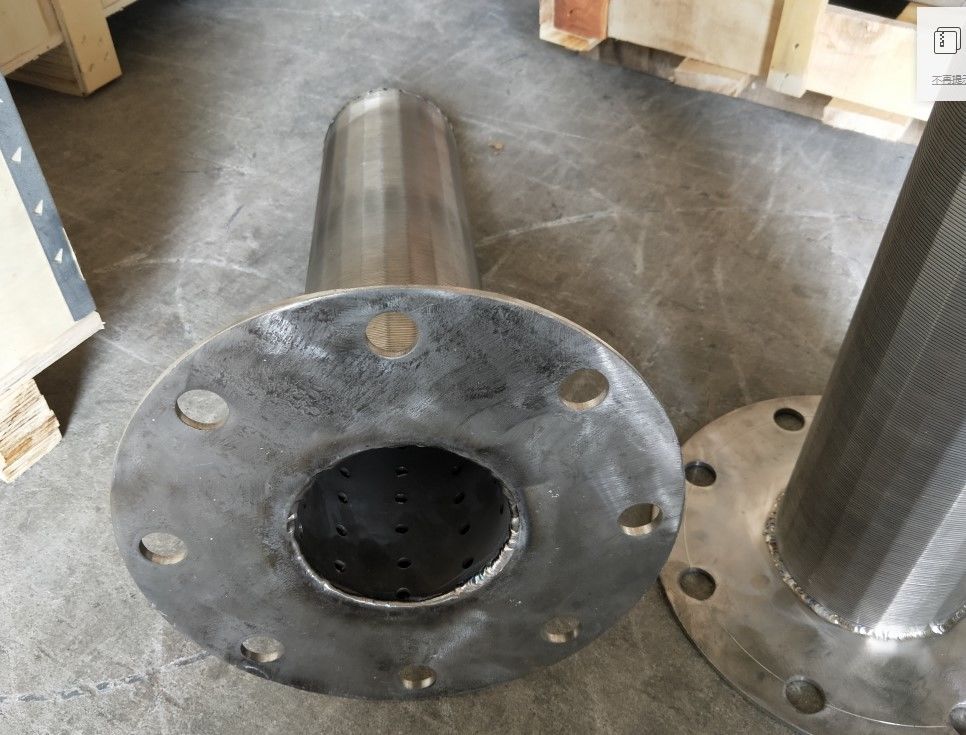

Perforated Stainless Steel Wedge Wire Screen Pipe For Geothermal Well Drilling

Perforated Stainless Steel Wedge Wire Screen Pipe For Geothermal Well Drilling
Perforated Stainless Steel Wedge Wire Screen Pipe For Geothermal Well Drilling

Large Image :  Perforated Stainless Steel Wedge Wire Screen Pipe For Geothermal Well Drilling

Product Details:
Place of Origin: Anping, Hebei,China
Brand Name: Hengyuan
Certification: ISO, CIQ, SGS, CE
Model Number: OD: 114mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: Wooden boxes or container
Delivery Time: 7 -10 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 meters per day
Detailed Product Description
Wedge Wire Screen Material: Stainless Steel 304 Base Pipe Material: N80
Slot Of Wedge Wire Screen: 0.1-50mm End Connection: Male/female Threaded
High Light:

johnson screen mesh

,

johnson well screen

Stainless Steel Wedge Wire Screen Tube With Perforated Steel Pipe





Stainless Steel Screen Pipe For Geothermal Well Drilling High Efficiency



Blind Casing Pipes And Jacket Screen Filter Pipes For Geothermal Well Drilling



Pipe Base Screen Information:



1. Hengyuan screen pipe contain single-deck well screen,double-deck well screen,pipe base well screen etc.

2. End connection:welded rings,threaded couplings

3. The length upto 6000mm

4. Used in oil well,gas well,water well sand control,slurry filter





Feature:



1. High flow capacity.

   The jacket is made of vee wire well screen this allow more water or oil to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.



2. Perfect integral strength and strong anti-deformation ability.
   The internal part of filtration jacket is supported by base pipe and the outer protective shroud can be fixed outside the filtration jacket if necessary. The integral strength of base pipe with drilled holes is merely 2~3% less than standard casing or tubing. So it can withstand compression deformation from stratum with sufficient integral strength. Even if local deformation occurs, the gap of compressed part will not be enlarged. It has been proved to be highly reliable on sand control.



3. More choice.

 The screen jacket material can be stainless steel or low carbon steel,it is can as per your requirement.



4. Slot with high density,

    low flow resistance .Slot density are 3~5 times as traditional slotted screen, with low flow resistance. It is conducive to increase production of oil or gas.



5. Good manufacturability makes high efficiency, low cost, and large-scale production achievable.





Pipe base screen
Screen API Pipe
ID(mm) OD(mm) SLOT(mm) Normal size(inch) OD(mm)
63 73 0.10-3 2-3/8” 60.3
74 85 0.10-3 2-7/8” 73
92 102 0.10-3 3-1/2” 88.9
103 127 0.10-3 4” 101.6
116 130 0.10-3 4-1/2” 114.3
129 142 0.10-3 5” 127
142 154 0.10-3 5-1/2” 139.7
172 184 0.15-3 6-5/8” 168.3
183 195 0.15-3 7” 177.8
220 232 0.15-3 8-5/8” 219.1
246 260 0.25-3 9-5/8” 244.48
276 290 0.25-3 10-3/4” 273.05
342 355 0.25-3 13-3/8” 339.70
Length of screen 5m*1 Length of pipe( m) 5.8
Length of screen 4.5 m * 2 9.3~9.6
Length of screen 5 m * 2 11~12

Perforated Stainless Steel Wedge Wire Screen Pipe For Geothermal Well Drilling 0

Perforated Stainless Steel Wedge Wire Screen Pipe For Geothermal Well Drilling 1

Perforated Stainless Steel Wedge Wire Screen Pipe For Geothermal Well Drilling 2
