Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Grade: | 304 |
|---|---|---|---|
| Slot Size: | 0.1-100mm | Diameter: | 650mm |
| Length: | 900 Mm | Components: | None, As The Customer's Requirement |
| Package: | Woden Box,Container | ||
| High Light: | 650mm dia rotary drum screen,wedge wire rotary drum screen,650mm dia rotating drum screen |
||

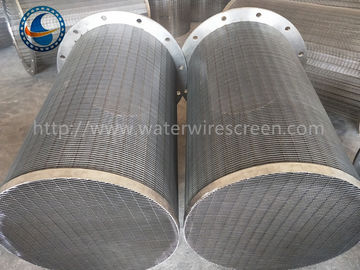

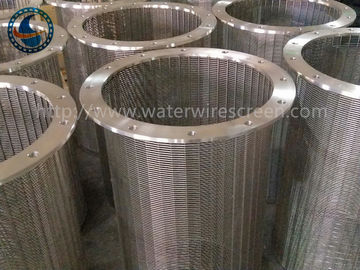

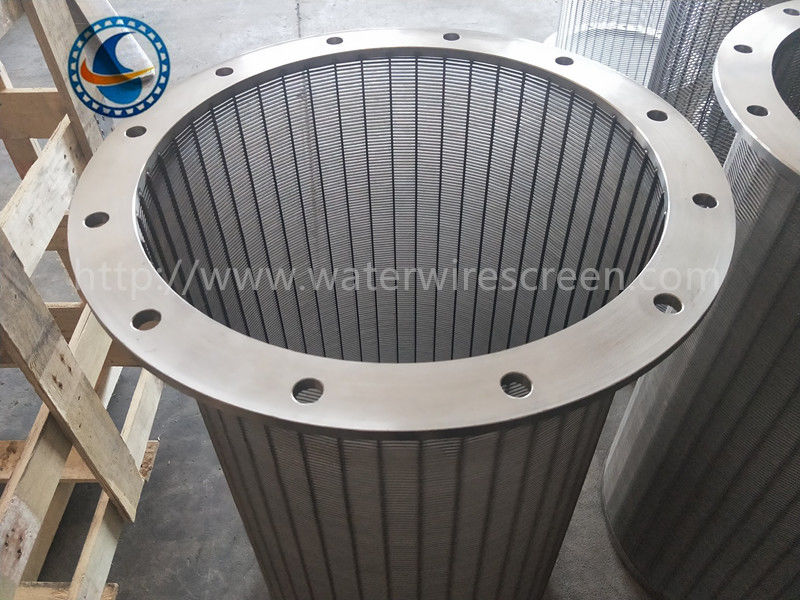

Stainless Steel Rotary Drum Screen With Flange End And Screen Plate End
Wedge Wire Rotary Drum Screen pipe Description:
Wedge Wire rotary drum screen is made by Johnson screen mesh through reverse welding.
There are two type of the screen cylinder, the inside circle wire ( circle gap ) and the inside vertical wire
( vertical gap ) .
It can be made by customer's requirement.The liquid flow from outside to inside.
Wedge wire rotary drum screen Specifications:
Material: stainless steel 302, 304, 316, 304L, 316L
I.D.: 400 - 1300 MM
Slot: 0.1mm - 100mm
Discrepancy: + / - 0.05mm
Length: 300mm-3000mm
Filter Type: from outside to inside.
Slot type: Outside circle wire and slot. Inside support rods.
Other components :Flange, stiffener, lifting handle, and other type components by request.
| SIZES OF THE WIRE AND ROD | ||||||
| Wire | ||||||
| Width(mm) | 1.0 | 1.2 | 1.5 | 2.3 | 3.0 | |
| Height(mm) | 2.0 | 2.2 | 2.5 | 3.5 | 4.6 | |
| Rod | Round wire | |||||
| Width(mm) | 2.3 | 2.3 | 3.0 | 3.7 | 3.3 | Diameter |
| Height(mm) | 2.7 | 3.5 | 4.6 | 5.6 | 6.3 | 0.25-0.5m |
Wedge wire rotary drum screen Specification:
| Material | Stainless steel |
| Grade | 304 316L etc |
| I.D | 150-2000 mm, 650 MM |
| Slot Size | 0.1 - 100 mm, 0.75 mm |
| Components | Flange, handle |
| Length | 300-3000mm, 1100 mm, |
| Filter type | From inside to outside |
| Wire size | 2*3.5 mm |
| Support rod | 3*4.6 mm |
| Wire shape | V shape |
Johnson screen basket Characteristic:
Johnson screen basket Industry:
Food and drink industry beverage and food products, urban water treatment, fruit and vegetable dehydration, water treatment including drinking and photographic use as well river water, sea water, waste dewatering treatment, used for centrifuge Industry, plating solutions, oils and distillates, industrial liquids of every kind, bright quenching and cutting fluids, chemical and petroleum industry, solid liquid separation, livestock manure dehydration.
Special specification can be made according to your need.
