Sand Control 1.0mm Continuous Slot Screen In Deep Well

Sand Control 1.0mm Continuous Slot Screen In Deep Well
Sand Control 1.0mm Continuous Slot Screen In Deep Well Sand Control 1.0mm Continuous Slot Screen In Deep Well Sand Control 1.0mm Continuous Slot Screen In Deep Well

Large Image :  Sand Control 1.0mm Continuous Slot Screen In Deep Well

Product Details:
Place of Origin: Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY101
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,128 pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Name: Continuous Slot Screen Material: Low Carbon Galvanized Steel
Slot Size: 1.0mm Diameter: 6 " (OD 168mm)
End Connection: Welded Rings Welded Ring Size: 25mm Width On Both Ends
Wrap Wire: 2.2*3.5mm Vee Shaped Wire Support Rod: ø3.8mm Round Wire
Total Length: 2900mm Screen Length: 2850mm
High Light:

Sand Control Continuous Slot Screen

,

Deep Well Continuous Slot Screen

,

1.0mm continuous slot screen

6" Low Carbon Galvanized Continuous Slot Screen For Sand Control In Deep Well



Product Description:



Continuous Slot Screen, also be named Wire Wrap Johnson Screen,Johnson screen,Wound Screen, Wedge wire screen, Wire wrapped screen.



Continuous Slot Screen is of the continuous slot,designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.Both the inner and outer screens shall be constructed of V-shaped wire continuously wrapped around an array of equally spaced support rods of the same material.Each junction of wire/rod contact shall be resistance welded.

.

Specification:



Name

Continuous Slot Screen

Material Low carbon galvanized steel
O.D 168 mm
Size 6-5/8 "
Slot size 1.0 mm
Length 2.9m
End connection Welded rings
Wire size 2.2*3.5mm Vee-shaped Wire (2.2mm is the width and 3.5mm is the hegith)
Support rod ø3.8mm round wire
Wire shape V shape



Regular Specifications:



Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized

O.D.: 4-1/2", 6-5/8", 8-5/8", 10-3/4", 12-3/4", 14", 16" inch and as request.

Slot: 0.1mm - 35mm

Discrepancy: + / - 0.05mm

Length: 50mm-6000mm, 2.9m and 5.8m in usual to fit container.

End Connection: welded rings or thread couplings ( male / female )

Specification of the wrap wire:1*2mm, 2*3mm, 2.2*3.5mm, 3*4.6mm and so on.

Specification of the rod:2.8mm, 3.0mm, 3.8mm, 4.0mm, 4.2mm, 4.5mm, 5.0mm and so on.

Special specification can be made according to your need.



Advantages:



Not easy to jam

the special V shaped wire, make the hole of screen outside face is smaller than inside, so the hole is not easy to jam.

Slot even

The CNC machine tools strictly control the gap between the wire, so that the gap is even.

Strong corrosion resistance

Stainless steel 304 have the high corrosion resistance



Application:

Continuous slot screen is best applied in the following situations:


Geological formations comprised of small, fine particles
Water wells where gravel packs will be installed
Thin aquifers, where maximum open area is required
Large- and small-diameter deep wells

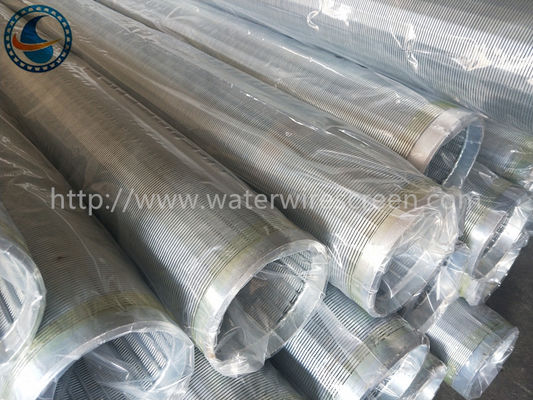

Sand Control 1.0mm Continuous Slot Screen In Deep Well 0

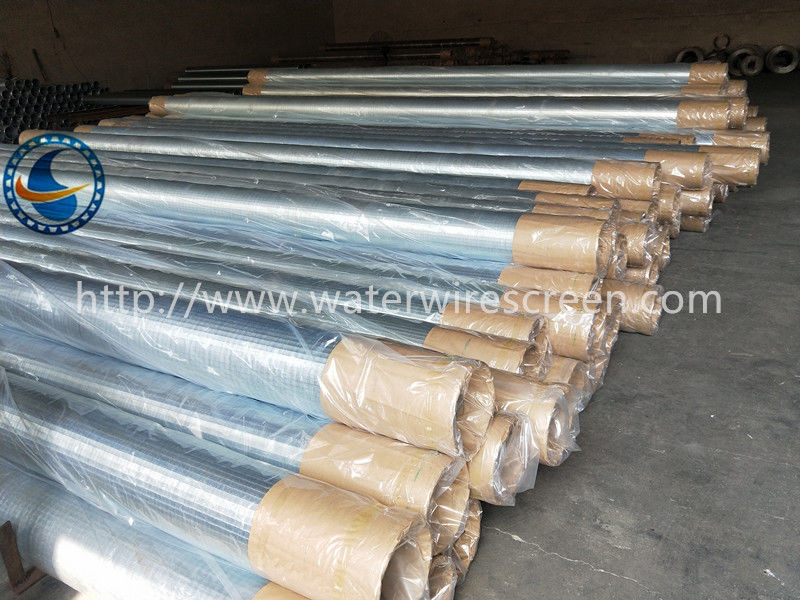

Sand Control 1.0mm Continuous Slot Screen In Deep Well 1

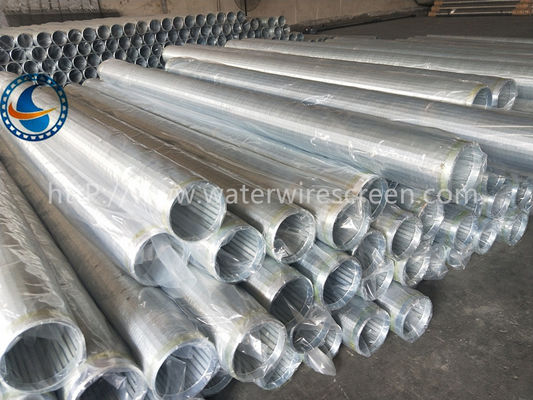

Sand Control 1.0mm Continuous Slot Screen In Deep Well 2
