1.5X2mm SS316L Continuous Slot Wedge Wire Screen Nozzle

1.5X2mm SS316L Continuous Slot Wedge Wire Screen Nozzle
1.5X2mm SS316L Continuous Slot Wedge Wire Screen Nozzle 1.5X2mm SS316L Continuous Slot Wedge Wire Screen Nozzle 1.5X2mm SS316L Continuous Slot Wedge Wire Screen Nozzle 1.5X2mm SS316L Continuous Slot Wedge Wire Screen Nozzle

Large Image :  1.5X2mm SS316L Continuous Slot Wedge Wire Screen Nozzle

Product Details:
Place of Origin: Hebei,China
Brand Name: HENG YUAN
Certification: ISO9000
Model Number: HY006
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiate
Packaging Details: Woden box, Paper box
Delivery Time: 3 - 5 days, according to the quantity
Payment Terms: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 pcs / month
Detailed Product Description
Name: Continuous Slot Wedge Wire Screen Nozzle Material: Stainless Steel
Slot Size: 0.5mm Grade: 316L
Diameter: 76 Mm Length: 220mm
Thread Size: 1-1/2" Threaded Wire Size: 1.5*2mm
Support Rod: 2*3mm Price: USD 15/piece
High Light:

SS316L Wedge Wire Screen Nozzle

,

0.5mm Wedge Wire Screen Nozzle

,

1.5X2mm Wedge Wire Screen Nozzle

SS316L Continuous Slot Wedge Wire Screen Nozzle With High Temperature Resistance



Continuous Slot Wedge Wire Screen Nozzle also be named wire wrapped screen nozzle,

water filter nozzle,Johnson type screen nozzle



Continuous Slot Wedge Wire Screen Nozzle Description:

Product Name  Continuous Slot Wedge Wire Screen Nozzle
Material Stainless Steel
Grade 316L
Slot size 0.5mm
Diameter 76 mm
Screen Lenth 220 mm
Total Length 260 mm
Thread Size 1 1/2 "
Nutsert No
Gasket No



Continuous Slot Wedge Wire Screen Nozzle Characteristic:



The wedge wire screen nozzle is welded with Johnson well screen, thread pipe and steel panel through special welding process.

The Johnson wedge wire screen nozzle is the profile wedge wire screen.

Material  can be 304,321,316L, titanium steel, Hastelloy etc.



Continuous Slot Wedge Wire Screen Nozzle Advantages:

  • Strong and durable
  • With long service life
  • The gap is even
  • No leakage of resin
  • No running material
  • High opening rate can meet the requirement of large flow
  • The structure is varied and meet different design requirements



Continuous Slot Wedge Wire Screen Nozzle Use:

Wedge Wire Screen Nozzle is American technology.water treatment, chemical, petrochemical, pharmaceutical, biotechnology, power plant, ion exchange, yin-yang bed, mixed bed.



Continuous Slot Wedge Wire Screen Nozzle Regular Specifications:

Type Slot size Specifications Flow filter area
0.2mm slot ( reference)
D H L M
HY-PT-45-A 0.2-0.5 45 25 90 25 280
HY-PT-45-B 0.2-0.5 45 35 100 25 380
HY-PT-45-C 0.2-0.5 45 45 110 25 550
HY-PT-45-D 0.2-0.5 45 35 55 25 380
HY-PT-45-E 0.2-0.5 45 45 65 25 550
HY-PT-53-A 0.2-0.5 53 35 100 25 450
HY-PT-53-B 0.2-0.5 53 45 110 25 580
HY-PT-53-C 0.2-0.5 53 55 120 32 700
HY-PT-57-A 0.2-0.5 57 35 100 32 530
HY-PT-57-B 0.2-0.5 57 45 110 32 680
HY-PT-57-C 0.2-0.5 57 55 120 32 830
HY-PT-70-A 0.2-0.5 70 40 105 32 650
HY-PT-70-B 0.2-0.5 70 55 115 32 810



































Continuous Slot Wedge Wire Screen Nozzle Pictures:

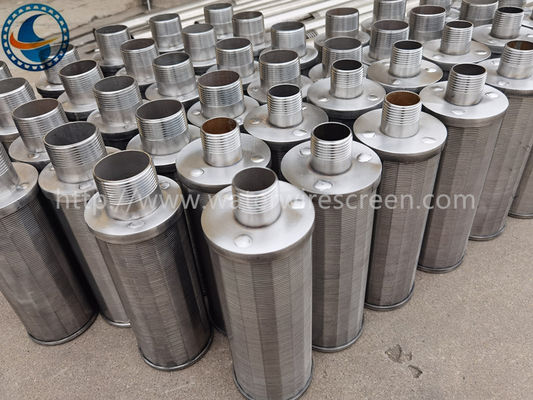

1.5X2mm SS316L Continuous Slot Wedge Wire Screen Nozzle 0

1.5X2mm SS316L Continuous Slot Wedge Wire Screen Nozzle 1

1.5X2mm SS316L Continuous Slot Wedge Wire Screen Nozzle 2
