Product Details:
Payment & Shipping Terms:
|
| Name: | Johnson Wedge Wire Pressure Screen Baskets | Material: | SS 304 |
|---|---|---|---|
| ID: | 303mm | Length: | 1275mm |
| Slot: | 0.5mm | Ends: | Flange |
| Wire Size: | 1.5*2mm Vee Shaped Wire | Support Rod: | 2*3mm Vee Shaped Wire |
| Filter Type: | From Inside To Outside | Surface: | Acid Washing |
| High Light: | johnson reverse wedge wire screen,stainless steel reverse wedge wire screen,0.5mm slot reverse wedge wire screen |
||

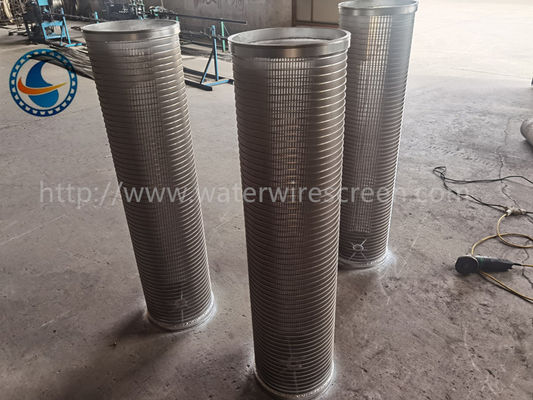

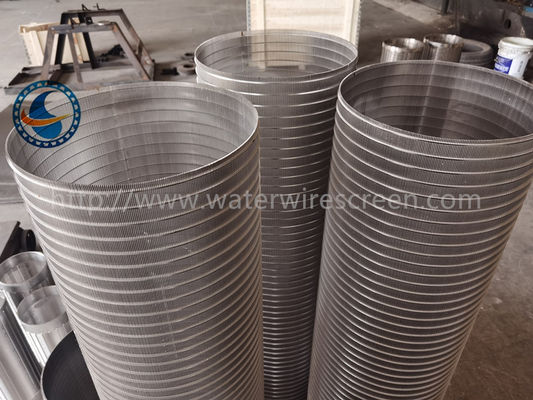

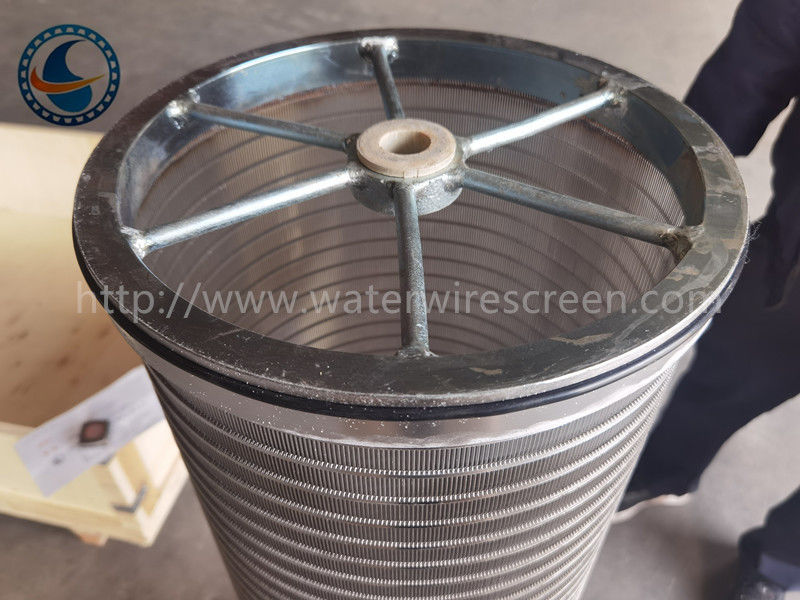

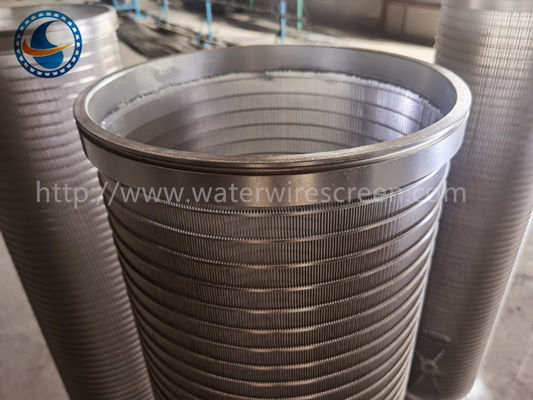

Stainless Steel 304 Johnson Wedge Wire Pressure Screen Baskets
Johnson Wedge Wire Pressure Screen Baskets Introduction:
Material: Stainless steel 304
Inner diameter:303mm
Slot: 0.5mm
Thickness:4mm
Length:1275mm
Johnson Wedge Wire Pressure Screen Baskets Normal Sizes:
| Material | SS304, SS304L, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
| Length | Up to 4000mm | ||||||
| Inner Diameter | 30-1300mm | ||||||
| Slot / Gap | 25 micron to 2000 micron (Tolerance:+-5 micron) | ||||||
| Wedge Wire(mm) | 1x2 | 1.2x2 | 1.5x2 | 2x3 | 2x3.5 | 3x4.6 | 3x5 |
|
Support Rod(mm) |
2x3 | 2x3 | 2x3 | 2x3 |
3*4.6, 3*5, 3*6 |
3x4.6, 3x5, 3x6 |
3x5, 3x6 |
| Ends | With Welded rings, Flange, Closed up etc | ||||||
| Filter Type | From inside to outside | ||||||
| Reinforce | With or without | ||||||
| Note | All sizes are all customized, according to your requirement | ||||||
Johnson Wedge Wire Pressure Screen Baskets Application:
Architecture & Construction
Food & Beverage Screens
OEM Screen Components
Refining & Petrochemical
Waste Water Treatment
Coal & Mine
Chemical industry
Pharmacy
Food and beverage
Metallurgy
Coal mining
Environmental protection
Johnson Wedge Wire Pressure Screen Filter type:
From inside to outside. Wire, Inside; Support rod, Outside.
1. Wire is the length of the screen pipe;
2. Support rod is the length of the screen pipe.
