Product Details:
Payment & Shipping Terms:
|
| Diameter: | 4-1/2",89 Mm,10-3/4",273 Mm Etc. | Slot Size: | 1.0 Mm, Can Be Made By Customer |
|---|---|---|---|
| Material: | Stainless Steel 304 / 316 L /321 | Length: | Up To 5800 Mm |
| Wire: | 2.2*3.5 Mm; 3*4.6 Mm | End Connection: | Thread Couplings |
| Package: | Wooden Box, Container | Wire Shape: | V Shape |
| OEM: | YES | Use: | Water Well Filter |
| High Light: | slot 80 water wire screen,slot 60 water wire screen,tube johnson stainless steel well screen |
||

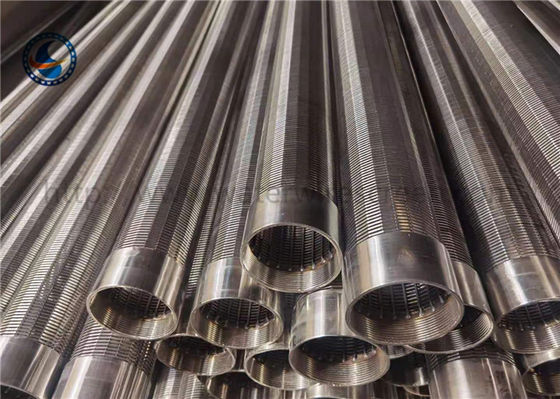

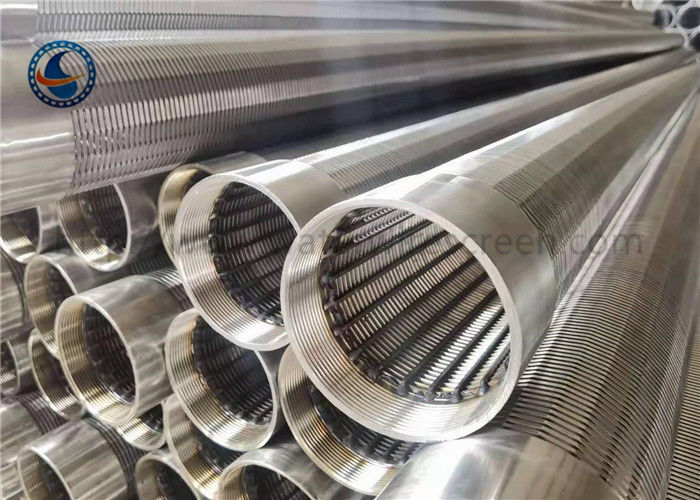

Stainless Steel Johnson Water Well Wire Screen Tube is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.
| Profile wire |
Wedge shape, Width(mm): 0.75 1.00 1.50 Height(mm): 1.50 2.00 3.00.
|
||
| Diameter(mm) |
89mm ( Less than 1027mm)
|
Length(mm) | 5500mm, (Less than 6000mm long) |
| Open area |
Large open area
|
Efficiency | High |
| Material |
Stainless steel 304 316 monel, hastelloy inconel nickel etc..
|
Function | liquid filtering / liquid solid separation |
| Quality control system | Factory own control | Cleaning way | Filter from outside to inside, easy to clean |
| Support rods |
Square shape, Width(mm): 2.00; Height(mm): 2.30 3.00
|
End connection | Commen fittings, NPT ,BSP end fittings, calculate price seperately |
| Min slot size |
50 micron
|
Thickness | 3-10mm |
| Length |
5500mm
|
Filter Rating | up to 90% |
| Color |
Silver(metal original color)
|
Technique | Belgium welding |
Stainless Steel Johnson Water Well Wire Screen Tube have superior open area due to their continuous slot openings. The benefits of which will :
• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
water well
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
We can produce products according to the needs of our customers.
Material: stainless steel 304, 316L, low carbon steel
Diameter: minimum diameter 32mm, maximum diameter 1270mm
Length: single tube can be up to 6 meters in length
Gap: 0.25mm, 0.5mm, 0.7mm, 1.0mm, 1.5mm is a regular gap. We can produce gaps of 0.1-50mm
Joints: Generally, there are joints at both ends of the pipe, such as flanges, weld rings, or threads, so that the pipes can be connected to meet the needs of use.
