Product Details:
Payment & Shipping Terms:
|

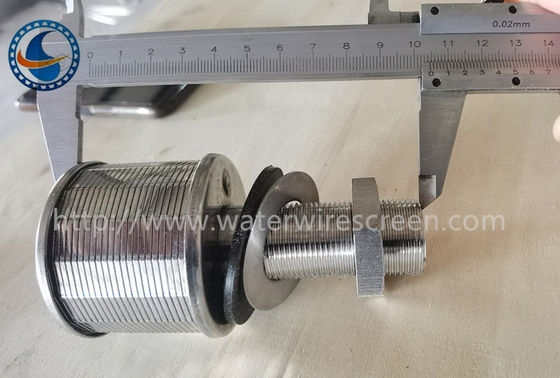

| Name: | Johnson Wedge Wire Screen Nozzle | Material: | Stainless Steel 316L |
|---|---|---|---|
| Diameter: | 53mm | Length Of Screen: | 45mm |
| Slot: | 0.2mm | Male Threaded: | M24 |
| Threaded Length: | 55mm | Nut: | 1 Piece |
| Other Accessory: | One SS Gasket And One Rubber Gasket | Rate Of Flow: | 1 Ton |
| High Light: | resin filter nozzles for water treatment,316l filter nozzles for water treatment,water filter nozzle 316l |
||
For intustrial water are an ideal solution for applications with heavy amounts of media whose weight could compromise the integrity of unsupported screens. That’s because wedge wire screen nozzles are affixed to durable steel plates that can withstand great loads without damage.
Using the wedge wire screen nozzle method gives you the reliability you want with the flow rate you require.
1. The size in the form is frequently-used, we can also make the screen nozzle as your request.
2. Material: Stainless Steel 304,321, 316L,titanium steel etc.
|
(NO.) |
(Type) |
(Ton) |
(Slot) (mm) |
(Size) |
0.2-0.25mm slot opening area of through-flow mm²(reference) |
|||
| D | H | L | M | |||||
| 1 | TYS45-1-C | 0.5 | 0.2-0.5 | 45 | 45 | 95 | 24 | 550-690 |
| 2 | TYS53-2-B | 1 | 0.2-0.5 | 53 | 45 | 100 | 24 | 680-710 |
| 3 | TYS53-2-C | 1.5 | 0.2-0.5 | 53 | 50 | 110 | 32 | 800-920 |
| 4 | TYS57-3-B | 2 | 0.2-0.5 | 57 | 45 | 110 | 32 | 660-790 |
| 5 | TYS70-4-B | 3 | 0.2-0.5 | 70 | 55 | 120 | 32 | 905-1100 |
