Product Details:
Payment & Shipping Terms:
|
| Name: | Wedge Wire Slotted Screen For Mineral And Aggregate Processing | Material: | Stainless Steel 304 |
|---|---|---|---|
| OD: | 1200mm | Length: | 3000mm |
| Slot: | 2.0mm | Wire Size: | 2*3.5mm Vee Wire |
| Support Rod: | 3*4.6mm Vee Wire | Distance Of Rods: | 30mm |
| Ends: | No Ends | Filter Type: | FITO |
| Reinforcing Bar: | 3*20mm Flat Steel Bar | Package: | Wooden Box |
| High Light: | aggregate processing wedge wire screen pipe,mineral processing wedge wire screen pipe,304 ss wedge wire screen tube |
||

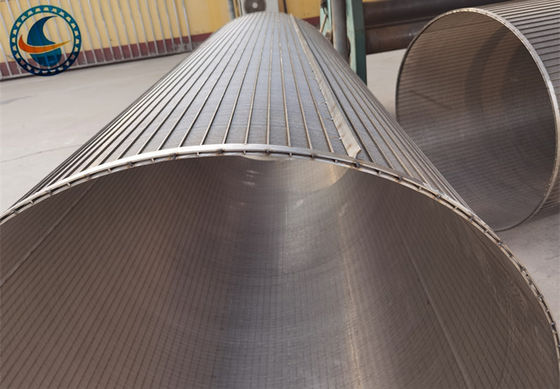

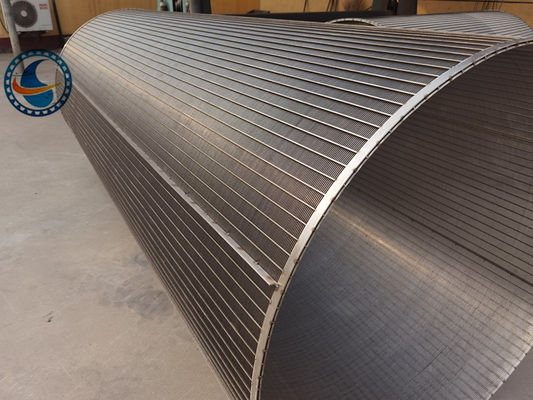

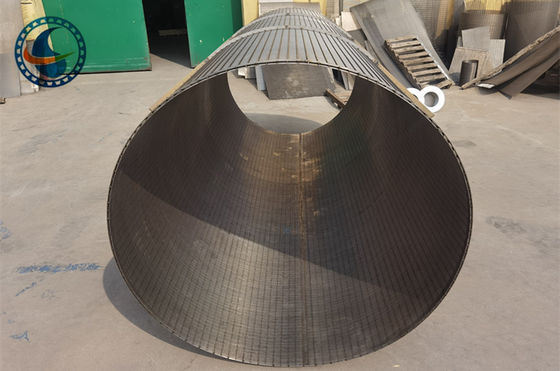

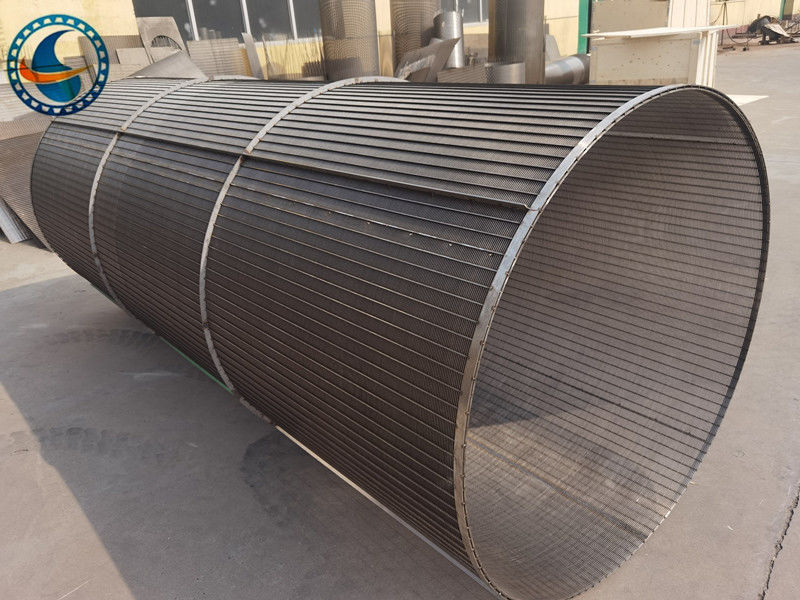

Wedge Wire Slotted Screen For Mineral And Aggregate Processing also known as Johnson screen,wedge wire screen filter, Johnson filter, wound screen, wire wrapped screen, wire winding screen.
Wedge Wire Slotted Screen For Mineral Processing is upper and lower port argon arc welding flange plate, the middle cylinder body is welded by stainless steel wedge wire screen, filtration accuracy of 25-800μ, is welded by stainless steel wedge wire and support bar, mainly filter plate, filter blue, filter core and other products.
Exploitation of water
Exploitation of crude oil
Exploitation of natural gas
Recycling
|
Outside Diameter (mm) |
Length (mm) |
Slot (mm) |
Type of end connection |
|
200,300,400,500,800, 900,1000 etc |
2000,3000,4000 etc
|
1.0,2.0,3.0 etc |
flange,closed up or open ends |
|
Explanation |
Besides above of the specification wedge wire slotted screen, we also can make other sizes according to the customer’s request. Diameter: ø29mm-ø1500mm. The length from the 100mm-6000mm. |
||
