Product Details:
Payment & Shipping Terms:
|
| Name: | Header Lateral Wire Wrapped Screen | Material: | Stainless Steel |
|---|---|---|---|
| Diameter: | 32mm | Length: | 1000mm |
| Slot Size: | 0.2mm | Wire: | 1.5*2mm |
| Support Rod: | 2*3mm | Surface: | Polished |

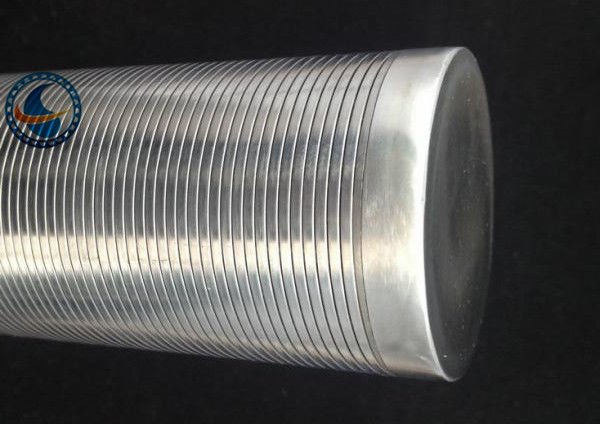

| One End: | With Male Threaded | The Other End: | Closed Up |
| Hole Shape: | Vee-shaped | Package: | Wooden Box |
| High Light: | 200 micron wire wrapped screen,header lateral wire wrapped screen,water softener resins wire wrapped screen |
||
Header Lateral Wire Wrapped Screens are received by simultaneously winding a spiral of profiled working wire and welding them to support wires, which are arranged along the axis of the cylindrical construction. This technology allows to provide welded profile wire screens for applications where high precision of the screen together with high strength is required.
Thanks to the newest welding technology we can provide:
1. Optional distance between support wires
2. Very precise and repeatable slot
3. Screens in accordance to special requests of our clients
Extended lifetime
Slot does not change during abrasive operation on the screen surface.
Increased efficiency
Capability to withstand heavy loads
High open area
No clogging
Perfectly smooth and flat surface
High precision of execution
Increased capacity and more precise separation, dewatering and filtration
Self-cleaning effect
Low pressure loss
High open area and strength parameter
Proper size of profile wire
Proper size of structural support wire
Profile shape of working wires (type Sb, Sbb or special wires)
Increased economical effectiveness, Lower cost
Higher efficiency
Permanence of exploited resources
Reduced maintenance cost
| Name | Header Lateral Wire Wrapped Screen |
| Material | Stainless steel 304, 304L, 316L and 321 etc. |
| Profile Wire |
1.0 *2.0 mm 1.5*2mm 1.5*2.5mm 2*3mm 2.3*3.5mm 2.2*4mm 2.2*4.5mm,3*4.6mm,3*5mm etc |
| Support Rods | 2*3mm 3*4mm 3*4.6mm 3*5mm 3*6mm 4*7mm |
| Round | From 2.5mm to 6.0mm |
| Slot Size | 0.025mm, 0.15mm, 0.25mm, 0.3mm ... 100mm etc |
| Pipe Length | Max 6 meter |
| Pipe diameter | 25mm to 1300mm |
| Screen Ends | Plain Beveled ends, male/female threaded, flange or close up. |
