Product Details:
Payment & Shipping Terms:
|
| Name: | Flat Profile Wire Screen Panels | Material: | Stainless Steel 304 |
|---|---|---|---|
| Slot Size: | 1.0mm | Max Length: | 4000mm |
| Max Width: | 4000mm | Wire Size: | 1.5*2mm Or Others |
| Support Rod: | 2*3mm Or Others | Surface: | Acid Washing |
| Package: | Wooden Box | Use: | Filtration |
| High Light: | ss304 wedge wire screen panels,acid washing wedge wire screen panels,1.0mm slot wedge wire panels |
||

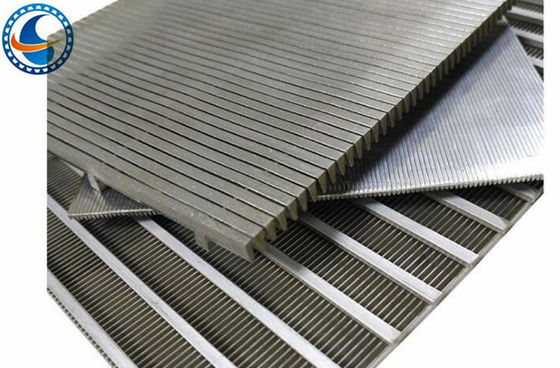

Flat Profile Wire Screen Panels, also known as Wedge wire plate, V-wire screen panel, are custom made for your application.
The features of this type of screen make it an attractive solution for separating solids from liquids, retaining media, filtering, sizing, dewatering, collecting, and distributing. Profile Wire screen offers continuous slot openings that widen inwardly so that particles tend to pass through the screen and reduce blinding.
Material:stainless steel 201, 304, 316L, Duplex steel 2205, 2507 etc.
Slot size(Opening):0.025-100mm or customer's requirement
Support bars pitch:10-30mm or customer's requirement
Wedge wire size:1*2mm, 1.5*2mm, 2*3mm, 2*3.5mm, 3*4.6mm or others
Support bars size:2*3mm,3*4.5mm or others
