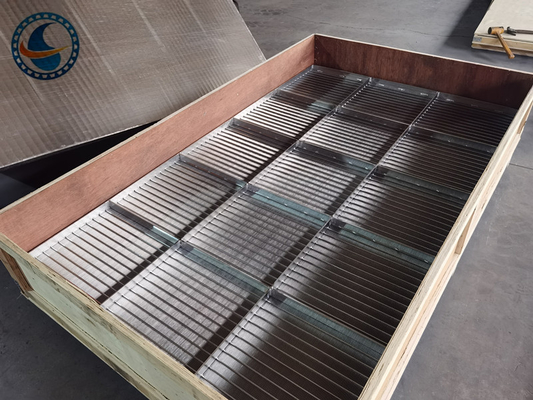

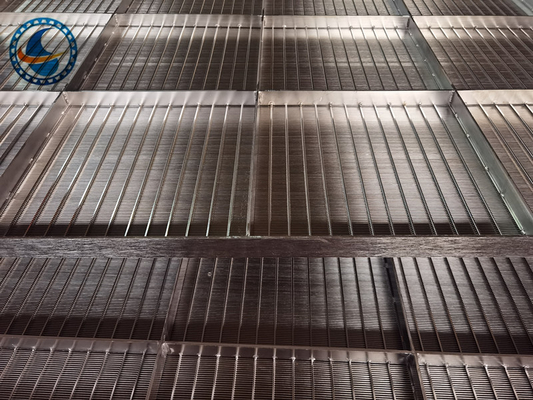

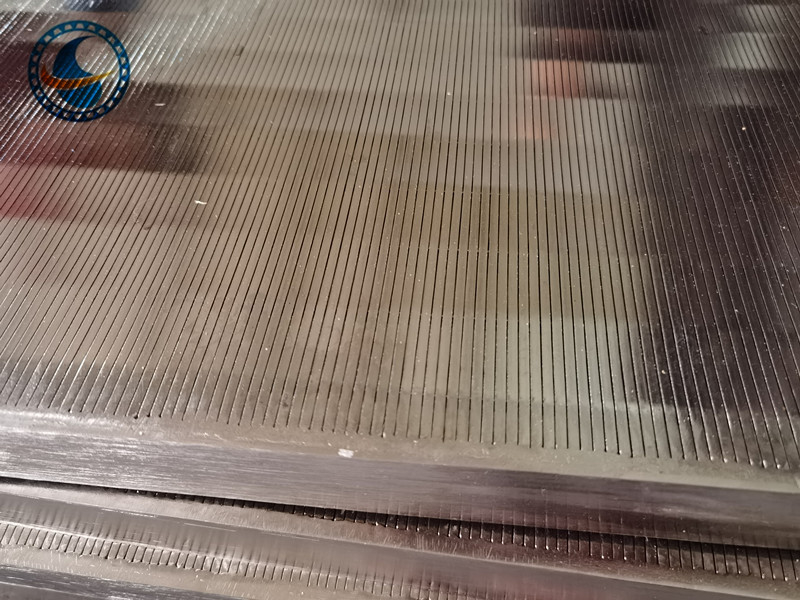

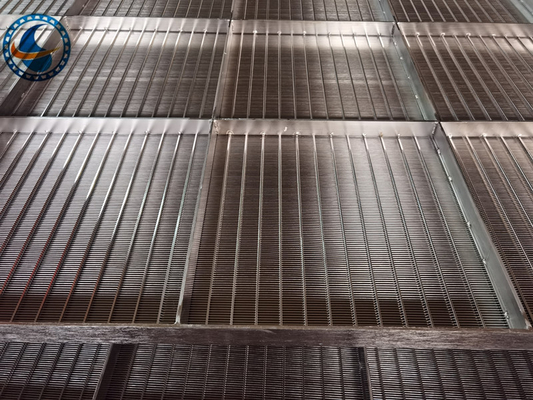

Flat Welded Drying Equipment Stainless Steel Wedge Wire Grates 2x1.2m

Flat Welded Drying Equipment Stainless Steel Wedge Wire Grates 2x1.2m
Flat Welded Drying Equipment Stainless Steel Wedge Wire Grates 2x1.2m Flat Welded Drying Equipment Stainless Steel Wedge Wire Grates 2x1.2m Flat Welded Drying Equipment Stainless Steel Wedge Wire Grates 2x1.2m Flat Welded Drying Equipment Stainless Steel Wedge Wire Grates 2x1.2m

Large Image :  Flat Welded Drying Equipment Stainless Steel Wedge Wire Grates 2x1.2m

Product Details:
Place of Origin: Hengshui city,Hebei,China
Brand Name: Heng Yuan
Certification: ISO9000
Model Number: HY112503
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Moister-Barrier with each piece,64pcs per 20 ft container
Delivery Time: 7-10 work days,according to the quantity
Payment Terms: L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs/Month
Detailed Product Description
Name: Flat Wedge Wire Screen Panel Material: Stainless Steel
Grade: 304 Slot Size: 0.5mm
Length: 2000mm Width: 1200mm
Wire Size: 3*4.6mm Vee Wire Support Rod: 3*4.6mm Vee Wire
Surface: Acid Washing Package: Wooden Box
High Light:

2x1.2m stainless steel wedge wire grates

,

welded stainless steel wedge wire grates

,

drying equipment wedge wire panels

Flat Welded Wedge Wire Screen Panel For Drying Equipment



Welded wedge wire screen panels can be constructed using rectangular support rods or round support rods.

They are the most widely used type of wedge wire screens mainly in the mineral processing both for stationery as well as vibratory decks.



Flat welded wedge wire screen panel can be designed to optimize the open area, strength and wear life for each application. The panels are either continuously or intermittently welded on the lower side of loop to provide complete rigidity to the panels thus becoming very effective in transmitting the vibrations without mechanical failures.

  1. Flat Screen with round support rods.
  2. Flat Screen with rectangular support rods.
  3. Screen Panel with side frame.
  4. Heavy duty wedge wire.

Flat Welded Wedge Wire Screen Panel  Features:



  • Self Supporting;
  • High Abrasion resistance;
  • Low pressure drop;
  • High resistance to Vibration.



Flat Welded Drying Equipment Stainless Steel Wedge Wire Grates 2x1.2m 0



Flat Welded Wedge Wire Screen Panel Applications :



Cylinder screen is used in food processing, waste water filtration, pulp and paper as well as mineral processing applications. Wedge wire or profile screen half cylinders can be added to an auger or screw press to separate solids from liquids in food, waste water, minerals and industrial grit/chips from coolant.



Flat Welded Drying Equipment Stainless Steel Wedge Wire Grates 2x1.2m 1Flat Welded Drying Equipment Stainless Steel Wedge Wire Grates 2x1.2m 2
