| Features: | Non-clogging | Material: | Stainless Steel |
|---|---|---|---|
| Unit Length: | 2.9m Or 5.8m To Fit Container | Name: | Water Wire Screen |
| Technique: | Point Welding | Application: | Filteration |
| Slot: | 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm Etc. | End Connection: | Female/male Threaded |
| High Light: | johnson screen pipe,sand control screens |
||

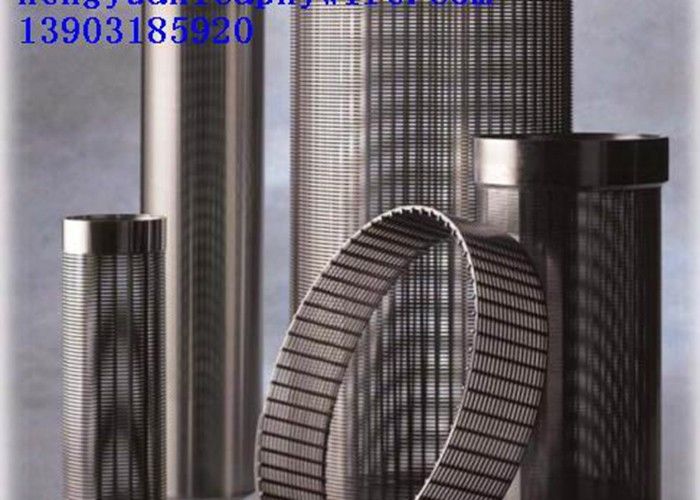

8-5/8" Water Wire Screen Pipe For Agricultural Systems Non Clogging
Water Wire Screen Pipe also be named Vee-Shaped Wire Screen, Johnson Screen ,Water well screen/rod based wire wrapped screen,wedge wire screen pipe.
Description:
Water Wire ScreenJohnson filter,water well screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:
·Water Well
·Waste Water Treatment
.Water supply systems
·Coal & Mine
·Food Processors & Beverage Screens
·Environmental protection
·Refining & Petrochemical
·Architecture & Construction
Water Wire Screen (continuous wire wound screen)
The normal size is:
Material: Stainless steel 304,304L,316L, or Low carbon galvanized
Diameter:4-1/2“ 6-5/8" 8-5/8" 10-3/4" 12-3/4" etc.
Length:2.9m or 5.8m to fit 20 ft container, Upto 6 meters
Slot: 0.5mm, 0.75mm, 1.0mm, 1.5mm in usual
End connection:Welded rings; API, NPT Male/female thread, Flange ends etc.
| SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Weight (ton) |
Wire size (mm) |
RODS diameter(mm)/ Support rod NOS |
| 4-1/2 | 114.3 | 0.040 | 2.9/5.8 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 4-1/2 | 114.3 | 0.040 | 2.9/5.8 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
| 6-5/8 | 168.3 | 0.040 | 2.9/5.8 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8-5/8 | 219.1 | 0.010 | 2.9/5.8 | 399 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 8-5/8 | 219.1 | 0.020 | 2.9/5.8 | 370 | 10.5 | 3.0*5.0 | 4.0mm/42 |
| 8-5/8 | 219.1 | 0.040 | 2.9/5.8 | 323 | 10.5 | 3.0*5.0 | 4.8mm/42 |
| 10-3/4 | 273.1 | 0.010 | 2.9/5.8 | 206 | 11 | 3.0*5.0 | 3.8mm/54 |
| 10-3/4 | 273.1 | 0.020 | 2.9/5.8 | 191 | 11 | 3.0*5.0 | 4.0mm/54 |
| 10-3/4 | 273.1 | 0.040 | 2.9/5.8 | 167 | 11 | 3.0*5.0 | 5.0mm/54 |
NOTE: We can also make other size according to your requirement.
Product Features:
1. Continuous opening has greatly increased the water flow area, so offers a better contact with the aquifer.
2. V-type profile of the structure to avoid clogging and ensure smooth flow.
3. Continuous long-term effective use of the pore.
4. Trapezoidal filter pipe offers a solid structure, high porosity, and accurate poring.
5. Trapezoidal wire filter pipe is easy for washing, long service life, safe, reliable, comprehensive and low cost.
