Stainless Steel Wedge Wire Screen Pipe Durable For Wastewater Filter

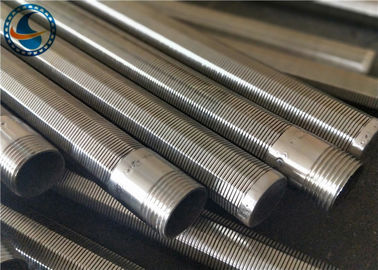

Large Image : Stainless Steel Wedge Wire Screen Pipe Durable For Wastewater Filter

Product Details:

Place of Origin:	Hengshui City,Hebei Province
Brand Name:	Hengyuan
Certification:	CE, CIQ, CO, FORM E, CCPIT etc.
Model Number:	OD 29-1300mm

Payment & Shipping Terms:

Minimum Order Quantity:	1 meter
Price:	USD 15-30 per meter
Packaging Details:	Wooden box
Delivery Time:	5-8 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	More than 50 meters per day

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	205, 304, 316L, Etc
Wire Size:	12mm, 1.22mm,1.52mm, 23mm,2*3.5mm	Support Rod:	23mm, 34.6mm, 35mm, 36mm
Slot:	0.025-100mm	Unit Length:	Upto 6000mm
Highlight:	wedge wire screen cylinders , welded wedge wire screen

Stainless Steel Wedge Wire Screen Pipe Durable For Wastewater Filter

Product Specifications

Attribute	Value
Material	Stainless steel
Grade	205, 304, 316L, etc
Wire size	12mm, 1.22mm, 1.52mm, 23mm, 2*3.5mm
Support rod	23mm, 34.6mm, 35mm, 36mm
Slot	0.025-100mm
Unit Length	up to 6000mm

Product Description

Stainless Steel High Open Area Wedge Wire Screen Pipe For Wastewater Filter

Hengyuan Stainless Steel Wedge Wire Screen Pipe, also known as Wedge wire screen, Vee-Wire screen pipe, Continuous slot Vee-wire screen tube, Wire wrapped screen, Wire wound screen, or water filter, is constructed with Vee-shaped wrapped wire and round rods welded together at each intersection for accurate slot dimensions and high filtration precision.

Profile wire	Width(mm): 1.0, 1.2, 1.5, 2.0, 2.2, 3.0, 3.2 etc. Height(mm): 2.0, 2.5, 3.5, 4.6, 5.0, 6.0 etc.
Support rod	Width(mm): 2.0, 3.0 Height(mm): 3.0, 4.6, 5.0, 6.0, 7.0 Also available as Round wire: ø2.50mm to 6.0mm
Slot size	0.10, 0.15, 0.20, 0.25, 0.30...100mm (custom sizes available)
Material	Stainless steel 304, 304L, 316L, 321 etc.
Length	Up to 4 meters
Diameter	29-1300mm
End	Plain beveled ends, male/female threaded, flange, close up

Other sizes available on request.

Key Advantages:

Reduces energy consumption and increases water flow
Minimizes erosion of entry surfaces and extends well life
Enables uniform and efficient well development
Significantly reduces potential pump damage and maintenance costs

Product Benefits

The wedge tapered opening becomes progressively wider, increasing dewatering efficiency
Non-plugging design ensures smooth circulation
Available in slot sizes ranging from 0.05mm to 100mm
Durable construction capable of carrying heavier loads without support structures
One-piece construction for reliability
Wide range of material options
Easy to clean with long service life, safe and reliable operation, and low comprehensive cost

Product Images
