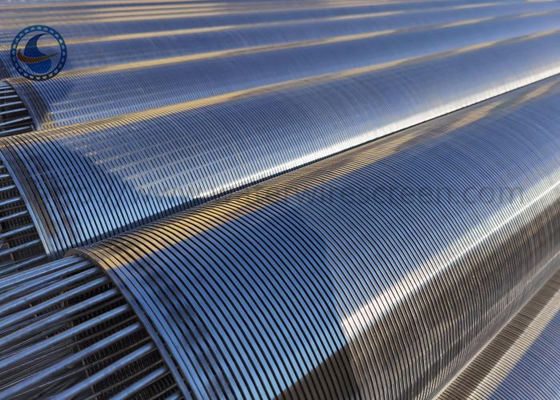

Continuous Slot High Opening Water Well Screen For Sand Control

Large Image : Continuous Slot High Opening Water Well Screen For Sand Control

Product Details:

Place of Origin:	Anping, Hebei, China
Brand Name:	HengYuan
Certification:	ISO, CIQ , SGS, CE
Model Number:	6-5/8 ", 8-5/8 ", 10-3/4 ",12-3/4"

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated price

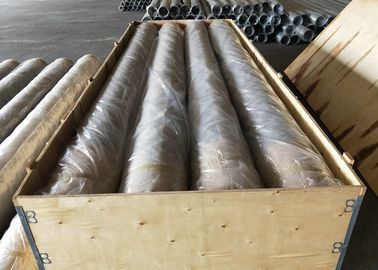

Packaging Details:	wooden boxes ,container
Delivery Time:	7 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1500 pcs /month

Contact Now

Detailed Product Description

Features:	Non-clogging	Name:	Johnson Wire Wrapped Screen
Material:	Low Carbon Galvanized ,stainless Steel	Length:	2.9m,5.8m Etc
Diameter:	3-1/2 ",4-1/2 ",6-5/8 ",8-5/8 ",10-3/4 ",12-3/4 "	Technique:	Full Welded
Application:	Sand Control Water Filter	Package:	Wooden Boxes ,container
Highlight:	oil well screen , wire wrapped pipe

Continuous Slot High Opening Water Well Screen For Sand Control

Product Specifications

Attribute	Value
Name	Johnson Wire Wrapped Screen
Material	Low carbon galvanized, stainless steel
Length	2.9m, 5.8m etc
Diameter	3-1/2", 4-1/2", 6-5/8", 8-5/8", 10-3/4", 12-3/4"
Technique	Full welded
Features	Non-clogging
Application	Sand control water filter
Package	Wooden boxes, container

Continuous Slot Opening Water Well Screen For Sand Control In Shallow Well And Deep Well

Standard Specifications

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE(WIDTH*HEIGHT) (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

Note: We can make any other sizes for you according to your drawing.

Features of Johnson Wire Wrapped Screen

They are non-clogging
Self-supported and rigid
Very long lifetime
Reliable and consistent filtration rating
All metallic construction (non-metallic also possible like PP)
Easy to clean smooth filtering surface

Applications

Johnson wire wrapped screen is used in the field of sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid/liquid and solid/gas separation; filtration of oils, greases, paints, food products, fuels, liquid cooling agents, chemicals etc.

Advantages

Johnson wire wrapped screens are rod based continuous slot screens, opening significantly increases the available open area, providing greater access to the water-bearing zone.

Non-clogging: "V" shaped or wedge shaped profile wire, avoids clogging, is self-cleaning and ensures an uninterrupted flow. Sand grains make only two point contact and don't wedge in the screen's inwardly enlarging slot.

Large open area: this allows more water to enter at much lesser frictional head loss and the efficiency of well is improved appreciably.

Additional Specifications

Specification (wedge wire)	Width(mm): 2.0, 2.2, 3.0, 3.2 Height(mm): 3.5, 4.6, 5.0, 6.0, 7.0
Specification (support rod)	Round: From 3.0mm to 6.0mm Note: The rod is round to avoid the screen stuck with the pump
Slot size	0.5, 0.63, 0.75, 1.0... 100mm also achieved upon request.
Material	galvanized low carbon (LCG), stainless steel (304,316 etc.)
Length	up to 6 meters.
Diameter	from 29mm to 1200mm.
End connection	Plain beveled ends, flanged or threaded couplings

Note: Other specifications available as per request
