Stainless Steel Wedge Wire Screen Anti Corrosion

Large Image : Stainless Steel Wedge Wire Screen Anti Corrosion

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO,SGS,CIQ,CE
Model Number:	HY004

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,110 pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	205, 304 , 304L, 316L
Slot Size:	0.5 Mm, 0.63mm, 0.75mm, 1.0mm	Diameter:	3" 4" 6" 8" 10" 12" 14" Etc
Length:	Upto 6 Meters	End Connection:	Welded Rings Or Others
Package:	Woden Box,Container	Wire Shape:	V Shape
Filter Type:	From Outside To Inside
Highlight:	rotating drum screen , wire cylinder basket

Stainless Steel Wedge Wire Screen - Anti Corrosion Johnson V Wire Rotary Screen

Product Attributes

Material	Stainless steel
Grade	205, 304, 304L, 316L
Slot size	0.5 mm, 0.63mm, 0.75mm, 1.0mm
Diameter	3" 4" 6" 8" 10" 12" 14" etc
Length	Up to 6 meters
End connection	Welded rings or others
Package	Wooden box, Container
Wire shape	V shape
Filter Type	From outside to inside

Product Description

Stainless Steel Wedge Wire V Shaped Wire Slot Screen Pipe for Screening is manufactured by winding cold-rolled wire (approximately triangular in cross-section) around a circular array of longitudinal rods. The wire is welded to the rods, creating rigid one-piece units with high strength characteristics at minimum weights.

The continuous slot design provides maximum open area to reduce entrance velocity, increase hydraulic efficiency, and promote more effective development.

Specifications

Material	Grade	O.D	Size	Slot size	Length	End connection	Wire size	Support rod	Wire shape
Stainless steel	205, 304, 304L, 316L	89mm 117mm 219mm 273mm 325mm	3-1/2" 4-1/2" 8-5/8" 10-3/4" 12"	0.5 mm, 0.63mm, 0.75mm, 1.0mm	2.9m / 5.8 m, 100-6000mm	Welded rings	63# 93# 118#	140#	V shape

Key Features

Not easy to jam: V-shaped wire design makes the screen's outer holes smaller than inner holes
Even slots: CNC machine tools ensure precise, uniform gaps between wires
Strong corrosion resistance: Stainless steel 304 provides excellent durability

Applications

Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal applications
Water injection, bi-modal sand, carbonates, thin pay
Horizontal, vertical, and deviated oil, gas, and water wells

OEM & Customization Services

We can manufacture wire screens to your exact specifications:

Materials: Stainless steel, carbon steel galvanized, carbon steel spray, or custom materials
Gap sizes: 0.1mm-15mm to meet various requirements
Diameter: 2" to 20" (29mm - 1000mm)
Length: Up to 6 meters
Connections: Groove, weld ring, or thread options

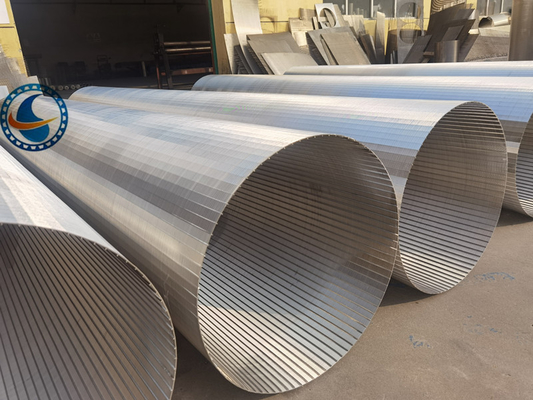

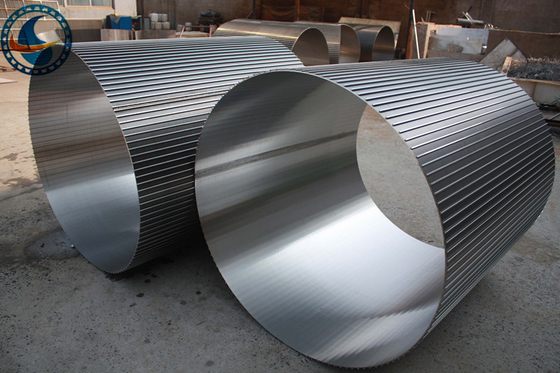

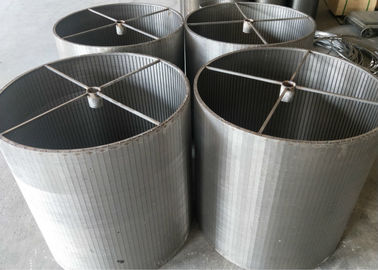

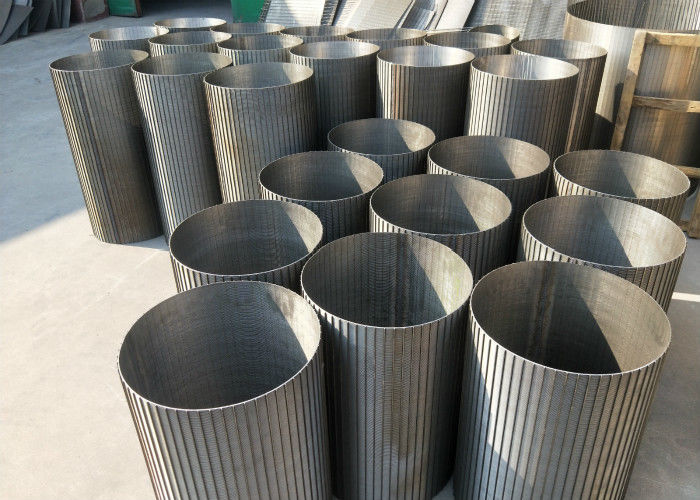

Product Images
