|Slot Size:||0.5mm||Length:||1219 Mm|
wedge wire panels,
stainless steel wedge wire grates

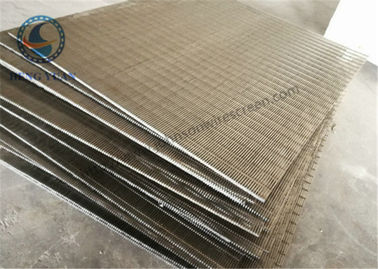

Low Carbon Steel Woun Johnson Slot Screen Sieve Plate Use In Coal Washer
Low Carbon Steel Woun Johnson Slot Screen Sieve Plate is welded by V wire and support rod.There is a fixed value slot between each v wire. The support bar can be a round wire or a triangular wire or a trapezoidal wire.
The maximum size of the screen can be 3000*4430mm. The frame or support plate can be added to the bottom or the surrounding of the screen according to the customer's needs. It can also make a certain arc according to customer requirements to meet the needs of use.
The surface of the screen is evenly spaced, the solder joint is firm and the permeability is good.
|Slot Size||0.5 mm,request|
|Width||486mm, up tp 3000mm|
|Length||1219mm, up to 4430mm|
|Wire size||2.5*4.8 mm|
|Support rod||1.8*25 mm|
|Wire shape||V shape|
Material: stainless steel 302, 304, 316, 304L, 316L or low carbon galvanized
Slot: 0.1mm - 35mm
Discrepancy: + / - 0.05mm
Dimension: width up to 3000 mm
Length up to 4430mm
|SIZES OF THE WIRE AND ROD|
The solder joint is firm: the tips of the two V-shaped wires are welded together, so that the weld is deep and the solder joint is firm and not easy to fall off.
Uniform gap, not easy to block, easy to rinse
Strong structure and deformation
Continuous gaps are more conducive to filtration and screening
High Precision Wedge Wire Screen Panels Johnson Wound Screen Plate Use For Coal Washer can be used for filtering and screening of many kinds of media, and it is widely used in multi-industry screening, filtration, dehydration, desilting and so on.
