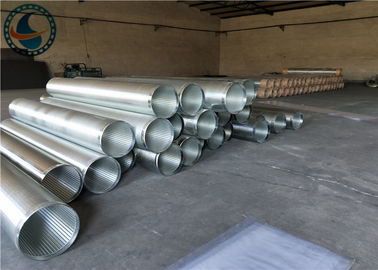

100 Bar Johnson Water Well Screen Pipe

100 Bar Johnson Water Well Screen Pipe
100 Bar Johnson Water Well Screen Pipe
video play

Large Image :  100 Bar Johnson Water Well Screen Pipe

Product Details:
Place of Origin: Hebei,China
Brand Name: HengYuan
Certification: ISO,CIQ,CO,FORM E etc
Model Number: HY-74
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negoiation Price
Packaging Details: wooden boxes ,container
Delivery Time: 7 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1500 pcs /month
Contact Now
Detailed Product Description
Features: Nong-clogging Name: Johnson Water Well Screen
Material: Low Carbon Galvanized ,stainless Steel Technique: Point Welding
Application: Filteration Package: Wooden Boxes ,container
Highlight:

water well screen

,

sand control screens

100 Bar Johnson Water Well Screen Pipe
Product Specifications
Attribute Value
Name Johnson Water Well Screen
Material Low carbon galvanized, stainless steel
Technique Point welding
Features Non-clogging
Application Filtration
Package Wooden boxes, container
Product Description
100 Bar Johnson Type Water Well Screen Pipe For Water Wire Screen - OEM/ODM orders acceptable.
Sand Control Screens
  • Available in various types including slotted liner, continuous slot wedge wire screen, pipe-based wire wrapped screen, bridge slot screen, and perforated casing for diverse applications
  • Incorporates state-of-the-art technologies to ensure optimal well completions
  • Our slotted liner is a standout product known for its anti-plugging performance and excellent mechanical properties
  • Advanced laser cutting process combined with CNC indexing system ensures precise slot sizes, improved production efficiency, and reduced costs
  • Wire wrapped screen features continuous slots for increased fluid entry, available in rod-based (wedge wire) and pipe-based styles
  • Pre-packed screen comes pre-equipped with packed gravel as a stand-alone solution
  • Bridge slot screen offers unique lightweight construction with reduced clogging potential and lower cost
Sand Control Screens Parameter Selection
Basepipe OD (in) Perforations per foot Basepipe Hole Size (in) Open Area of Basepipe Holes (in²/ft) Wrap Wire Size Keystone (in) Rib Wire Size Round (in) Maximum OD (in)
1.05 54 0.312 4.14 0.09*0.09 0.125 1.489
1.315 66 0.312 5.06 0.09*0.09 0.125 1.726
1.66 78 0.312 5.98 0.09*0.09 0.125 2.126
1.90 42 0.375 4.63 0.09*0.09 0.125 2.387
2.063 42 0.375 4.63 0.09*0.09 0.125 2.55
2.375 54 0.375 5.96 0.09*0.09 0.125 2.86
2.875 66 0.375 7.28 0.09*0.09 0.125 3.362
3.25 78 0.375 8.61 0.09*0.09 0.125 3.737
3.50 78 0.375 8.61 0.09*0.09 0.125 3.987
4.00 90 0.375 9.94 0.09*0.09 0.125 4.487
4.50 102 0.375 11.26 0.09*0.09 0.125 5.001
5.00 114 0.375 12.59 0.09*0.09 0.125 5.506
100 Bar Johnson Water Well Screen Pipe 0
