Product Details:
Payment & Shipping Terms:
|
| Package: | Woden Box, Container | Slot Size: | 1.0 Mm |
|---|---|---|---|
| Material: | Stainless Steel | Diameter: | 10 ",273mm |
| Length: | 5.8M | Grade: | 304 |
| End Connection: | Wleded Rings | ||
| High Light: | water well screen,johnson screen pipe |
||
Continuous Slot Water Wire Screen Replace Johnson Screens Groundwater And Wells Wleded Rings End Connection
Water Wire Screen Product Description:

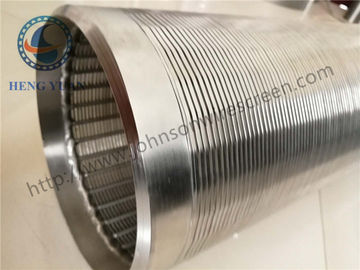

1: High Strength Continuous Slot Stainless Steel Water Well Drill Screenis manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods.
2: Each intersecting point of these wires is fusion welded.
3: The pitch of winding gives different spacing between two adjacent turns of wire.
4: This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.
Water Wire Screen Replace Johnson Wedge Wire Screen, These Water Wire Screen can stand wear and tear
Water Wire Screen Specificarion:
| Material | Stainless steel |
| Grade | 304 316L |
| O.D | 63mm 89mm 117mm 168mm 219mm 273mm 325mm 377mm 426mm |
| Size | 2" 3" 4" 5" 6" 8" 9" 10" 12" 14" 16" |
| Length | 5.8 m / 2.9 m |
| Solt size | 1.0 mm |
| End connection | Welded rings |
| Wire size | 63# 93 # 118# |
| Support rod | 120# 140 # 170# 200# |
| Wire shape | V shape |
High Strength Continuous Slot Stainless Steel Water Well Drill Screen have superior open area due to their continuous slot openings. The benefits of which will :
• Reduce energy consumption and increase water flow.
• Reduce erosion of entry surfaces and increase well life.
• Allow a uniform and efficient well development.
• Reduce significantly potential pump damage and subsequent maintenance costs.
Water Wire Screen Parameter selection table:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Water Wire Screen Use:
High Strength Continuous Slot Stainless Steel Water Well Drill Screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:
water well
water supply systems
Refining & petrochemical
Filter equipment
Sand control
