SS 304L High Strength Continuous Slot Sand Control Water Wire Screen

Large Image : SS 304L High Strength Continuous Slot Sand Control Water Wire Screen

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO, CIQ, CE, FORM E
Model Number:	HY005

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,64 pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	304L
Slot Size:	1.0 Mm	Diameter:	10-3/4 ", 273mm
Length:	5.8M	End Connection:	Wleded Rings
Wire:	3*6mm	Support Rod:	ø5.0mm Round Wire
Highlight:	water well screen , sand control screens

SS 304L High Strength Continuous Slot Sand Control Water Wire Screen

Product Attributes

Attribute	Value
Material	Stainless steel
Grade	304L
Slot size	1.0 mm
Diameter	10-3/4 ", 273mm
Length	5.8M
End connection	Welded rings
Wire	3*6mm
Support rod	ø5.0mm round wire

Product Description

SS 304L High Strength Continuous Slot Sand Control Wire Screen For Water Well

High Strength Continuous Slot Johnson Sand Control Water Well Drill Screen which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded. The pitch of winding gives different spacing between two adjacent turns of wire.

Specification

Parameter	Value
Material	Stainless steel
Grade	304L
O.D	273mm, also can be 63mm 89mm 117mm 168mm 219mm 325mm 377mm 426mm
Size	10", also can be 2" 3" 4" 5" 6" 8" 9" 12" 14" 16"
Length	5.8 m, also can be 2.9 m to fit container
Slot size	1.0 mm
End connection	Welded rings
Wire size	118#, Also can be 63# 93# etc
Support rod	ø5.0mm, Also can be ø2.8-6.0mm
Wire shape	Vee shaped

Characteristics

High Strength Continuous Slot Johnson Sand Control Water Well Drill Screen have superior open area due to their continuous slot openings. The benefits of which will:

Reduce energy consumption and increase water flow
Reduce erosion of entry surfaces and increase well life
Allow a uniform and efficient well development
Reduce significantly potential pump damage and subsequent maintenance costs

Regular Specifications

SIZE (INCH)	O.D (MM)	SLOT (MM)	LENGTH (M)	COLLAPSE STRENGTH (BAR)	TENSILE WEIGHT (TON)	WRAP WIRE(WIDTH*HEIGHT) (MM)	RODS (MM)
3-1/2	88.9	1.0	3	＞22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	＞28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	＞40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	＞33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	＞83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	＞34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	＞50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	＞60	46	3.2*6.0	5.0MM/48
10-3/4	273.1	0.75	5.8	＞50	32.9	2.3*3.5	4.9MM/55
10-3/4	273.1	1.0	5.8	＞60	39.5	3.0*5.0	4.9MM/55
10-3/4	273.1	1.0	5.8	＞100	48	3.2*6.0	5.0MM/55
12-3/4	323.9	1.0	5.8	＞120	37.2	3.0*5.0	4.0MM/50
14	355.6	1.0	3	＞80	37.8	3.0*5.0	4.0MM/59

Applications

Water well
Water supply systems
Refining & petrochemical
Filter equipment
Sand control

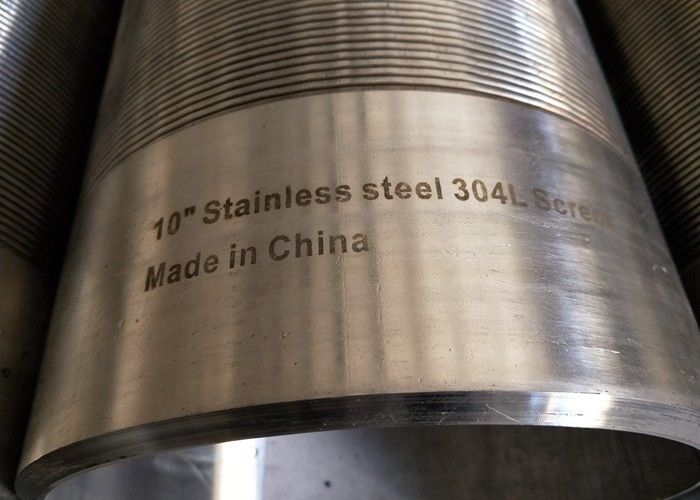

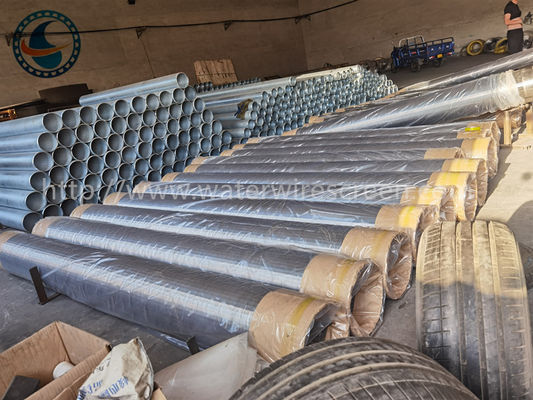

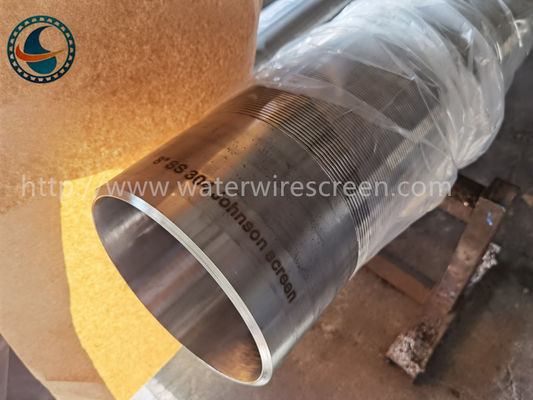

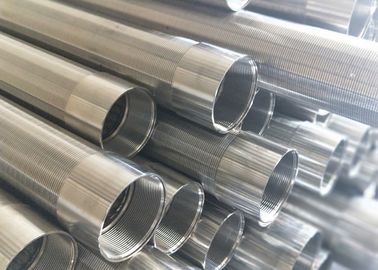

Product Images
