Product Details:
Payment & Shipping Terms:
|
| Package: | Woden Box, Container | Slot Size: | Customize Size,0.5,0.63,0.75,1.0mm In Usual |
|---|---|---|---|
| Material: | Stainless Steel | Diameter: | 3-1/2"; 4-1/2"; 6-5/8"; 8-5/8"; 10-3/4"; 12-3/4" Etc |
| Length: | 5.8M | Grade: | 304,201, 205, 321, 316L |
| End Connection: | Wleded Rings | Hole Shape: | Slot |
| Type: | Filter Cylinder, FIlter Elements, Wedge Wire Screen Pipe | Usage: | Liquid Filter, Solid Filter |
| Product Name: | Johnson Screen Cylinder, Wedge Wire Screen, Screen Filter , Wire Wrap Screen | ||
| High Light: | water well screen,sand control screens |
||
304 SS Johnson Wedge Wire Screen Groundwater Wells V Shape For Drum FIlter
Water Wire Screen Specificarion:
| Material | Stainless steel |
| Grade | SS304 SS316L SS321 SS201 |
| O.D | Min. 32mm Max.1300mm |
| Size | 2" 3" 4" 5" 6" 8" 9" 10" 12" 14" 16" |
| Length | 100-6000mm |
| Solt size | 0.1-30 mm |
| End connection | Welded rings/ Nothing |
| Wire size | 63# 93 # 118# |
| Support rod | 120# 140 # 170# 200# |
| Wire shape | V shape |
Water Wire Screen Product Description:

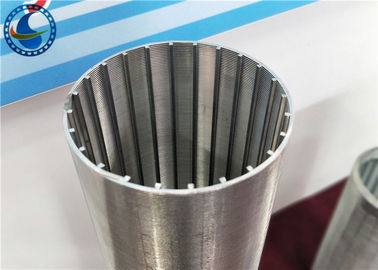

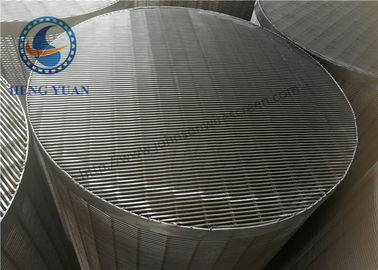

1: 304 SS Johnson Wedge Wire Screen Groundwater Wells V Shape For Drum FIlter is manufactured with V-shaped profile wire which is spirally wound around a cage of longitudinal support rods. Each intersecting point of these wires is fusion welded.
2: The pitch of winding gives different spacing between two adjacent turns of wire. This spacing gives passage for water to enter. The entire process is completed on fully computerized machines.
3: The gap is uniform, the solder joint is firm, the permeability is good, the flowability is good, the occurrence of blockage is reduced, and the service life of the device is prolonged.
Water Wire Screen Use:
High Strength Continuous Slot Stainless Steel Water Well Drill Screen has been known as the world's leading manufacturer and provider of industrial filters since 1904.We provide screening solutions to almost every industry,including:
water well
water supply systems
Refining & petrochemical
Filter equipment
Drum Filter
Sand control
Water Wire Screen Regular Specification:
|
SIZE (INCH) |
O.D (MM) |
SLOT (MM) |
LENGTH (M) |
COLLAPSE STRENGTH (BAR) |
TENSILE WEIGHT (TON) |
WRAP WIRE(WIDTH*HEIGHT) (MM) |
RODS (MM) |
| 3-1/2 | 88.9 | 1.0 | 3 | ＞22 | 10.2 | 2.3*3.5 | 3.8MM/22 |
| 4-1/2 | 114.3 | 1.0 | 3 | ＞28 | 11.5 | 2.3*3.5 | 3.8MM/22 |
| 6-5/8 | 168.3 | 0.75 | 5.8 | ＞40 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 1.0 | 5.8 | ＞33 | 12.8 | 2.3*3.5 | 3.8MM/32 |
| 6-5/8 | 168.3 | 0.63 | 5.8 | ＞83 | 45 | 3.2*6.0 | 6.0MM*32 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞34 | 21.9 | 2.3*3.5 | 3.8MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞50 | 38.2 | 3.0*5.0 | 4.0MM/48 |
| 8-5/8 | 219.1 | 1.0 | 5.8 | ＞60 | 46 | 3.2*6.0 | 5.0MM/48 |
| 10-3/4 | 273.1 | 0.75 | 5.8 | ＞50 | 32.9 | 2.3*3.5 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞60 | 39.5 | 3.0*5.0 | 4.9MM/55 |
| 10-3/4 | 273.1 | 1.0 | 5.8 | ＞100 | 48 | 3.2*6.0 | 5.0MM/55 |
| 12-3/4 | 323.9 | 1.0 | 5.8 | ＞120 | 37.2 | 3.0*5.0 | 4.0MM/50 |
| 14 | 355.6 | 1.0 | 3 | ＞80 | 37.8 | 3.0*5.0 | 4.0MM/59 |
Water Wire Screen OEM service:
Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.
Custom range
Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.
Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.
Diameter: 32 mm - 1000 mm.
Length: 2.9 M, 5.85 M. Up to 6 M.
Connection form: groove connection/weld ring connection or thread connection.
