| Name: | Johnson Vee Wire/Wedge Wire Screen | Material: | Stainless Steel,low Carbon Galvanized |
|---|---|---|---|
| Length: | 1000mm,2000mm,3000mm | Diameter: | 29,38,42,57,63,76,89,108,150,168,320,600,900,985 Etc |
| Slot: | 0.05,0.1,0.25,0.5,1.0 And So On | Technique: | Point Welding |
| Fetures: | Non-clogging | Application: | Filteration |
| Package: | Wooden Boxes | ||
| Highlight: | johnson wedge wire screens,johnson stainless steel screen |
||

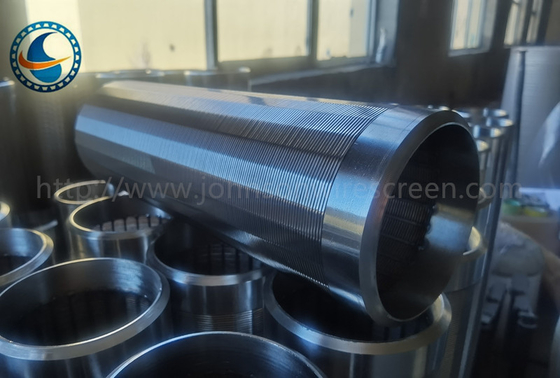

Water Filtration Johnson Wedge Wire Screens Abrasion Resistant Easy Cleaning
Usage:
The all welding wire wrap screen can be used in petroleum, gas and water well, filling with gravels, can prevent the sand and protect the equipment in the well and underground, prolong the life span. It has the characteristics of easy operation, fine permeability, unaffected by temperature, long life service, safety and reliability, low comprehensive cost and etc.
Resin Trap Screen Predominantly used in water treatment processes namely in 'Ion Exchange' and other numerous media filter systems, Completion Products offers a Resin Trap Screen. This screening system is primarily used as a safety device and is positioned immediately after the outlet nozzle of the vessel/reactor.
Material:low carbon wire,stainless steel wire
Diameter:29-1200mm,can make as customers request
Slot size(mm):0.05-30mm,can make as customers request
Length:10-3000mm

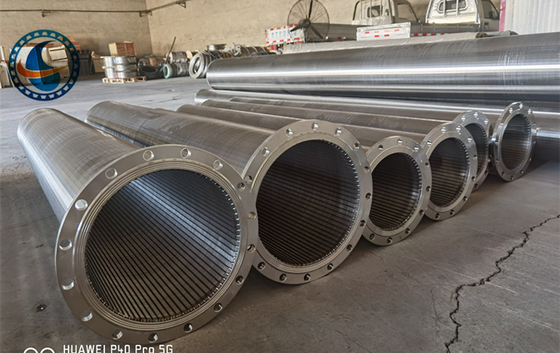

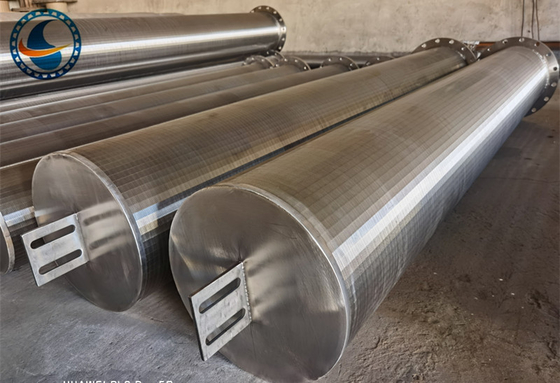

End connection:male/female threaded couplings,welded rings/plain beveled ends ,flange,closed end plate,same slot size plate
Specification:
Triangle wire size:
| Triangle wire | Width | 1.5mm | 2.2mm | 2.8mm | 3.1mm | 3.4mm | 5.0mm |
| height | 4.0mm | 4.5mm | 5.0mm | 6.0mm | 7.5mm | 10.0mm | |
| Slot | 0.10mm-10mm | ||||||
Support rod size:
| Support rod | Width | 1.0mm | 1.5mm | 1.8mm | 2.7mm | 3.2mm | 3.6mm |
| height | 2.0mm | 2.5mm | 3.0mm | 4.2mm | 5.3mm | 5.7mm | |
| Slot | 0.2mm-5mm | ||||||
Features:
A: Non-clogging surface.
B: Large open area.
C: Low-pressure drop.
D: Hydraulic efficiency
E: High flow rates.
F: Mechanical strength.
G: Abrasion-resistant.
H: Easy cleaning.
If you have any inquiries please feel free to contact us!
Our factory Hengyuan hardware netting industry product co., Ltd located in Anping county, Hebei Province, China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,Johnson screen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh,ARC screen,header and hub laterals &hub radial laterals,pipe base ,crimped wire mesh/stainless steel wire mesh/perforated wire mesh etc.
