| Features: | Non-clogging | Name: | Female Threaded Johnson Wedge Wire Screens |
|---|---|---|---|
| Material: | Stainless Steel,low Carbon Galvanized | Length: | 10-3000mm |
| Diameter: | 4-1/2", 6-5/8", 8-5/8", 10-3/4", 12-3/4" | Slot: | 0.5mm, 0.63mm, 075mm, 1.0mm In Usual |
| Technique: | Full Welded | Application: | Filteration |
| Package: | Wooden Boxes,container | ||
| High Light: | johnson wedge wire screens,johnson filter screen |
||

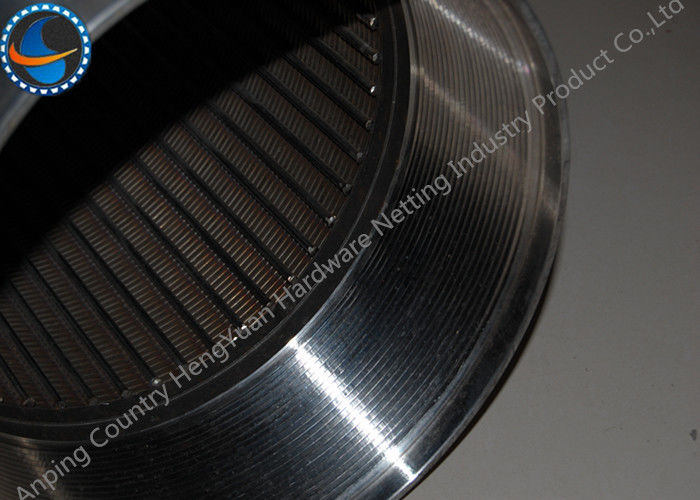

Female Threaded Johnson Wedge Wire Screens ,Water Well Screen Pipe
1. Production process continuity :
V-shaped profile wires creating slots which enlarge inwardly and therefore avoid clogging and minimize downtime.
2. Low maintenance costs :
Separation at the screen surface which can easily cleaned by scraping or back washing.
3. Maximum process output :
Precise and continuous slot openings resulting in accurate separation without loss off media.
4. Low operational costs :
Large open area with an effective flow, high yield and a low pressure drop (dP)
5. Long live:
Welded at each intersection creating a strong and durable screen.
6. Reduced installation costs :
supporting constructions eliminating costly support media and enabling a maximum flexibility in the design of components.
7. Chemical and thermal resistant :
A variety of corrosion resistant stainless steel materials and many exotic alloys suitable for high temperatures and pressures.
Each slot opening between adjacent wires is V-shaped, resulting from the special shape of the wire used to form the screen surface.
The V-shaped opeings, designed to be nonclogging, are narrowest at the outer face and widen inwardly.
Continuous-slot screens provide more intake area per unit area of screen surface than any other type.
For any given slot size, this type of screen has maximum open area.
Specification :
Slot size (mm): 0.10 , 0.15 , 0.2 , 0.25 , 0.30 - 3 , also achieved upon customer request.
Open area up to 90 %.
Material : Low Carbon , Low Carbon Galvanized steel ( LCG ) ,Stainless Steel ( 304 ,316L etc .)
Lengths up to 6 meters.
Diameter ranging from 29 mm to 1300 mm
End Connection :Plain beveled ends for butt welding or threaded etc.
Common Sizes , O.D . SLOT , Length , Strength , ROD , and other details :
| SIZE (inch) |
O.D (mm) |
SLOT (inch) |
LENGTH (m) |
Collapse Strength (psi) |
Tensile Strength (ton) |
Wire size (mm) |
ROD (mm) |
| 4-1/2" | 114.3 | 0.040 | 2.9 | 395 | 6 | 2.2*3.0 | 3.8mm/22 |
| 4-1/2" | 114.3 | 0.040 | 2.9 | 395 | 6 | 2.3*3.0 | 3.8mm/22 |
| 6-5/8" | 168.3 | 0.040 | 2.9 | 252 | 8 | 2.3*3.5 | 3.8mm/32 |
| 8-5/8" | 219.1 | 0.010 | 2.9 | 399 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 8-5/8" | 219.1 | 0.020 | 2.9 | 370 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 8-5/8" | 219.1 | 0.040 | 2.9 | 323 | 10.5 | 3.0*5.0 | 3.8mm/42 |
| 10-3/4" | 273.1 | 0.010 | 2.9 | 206 | 11 | 3.0*5.0 | 3.8mm/54 |
| 10-3/4" | 273.1 | 0.020 | 2.9 | 191 | 11 | 3.0*5.0 | 3.8mm/54 |
| 10-3/4" | 273.1 | 0.040 | 2.9 | 167 | 11 | 3.0*5.0 |
3.8mm/54 |
Our factory Hengyuan hardware netting industry product co.,ltd located in Anping country ,Hebei Province,China.
Our mainly products are :stainless steel vee sharped wire /wrap wire,johnson screeen ,water well screen/rod based wire wrapped screen,wedge wire screen pipe,reverse wedge wire screen,screen nozzle /water and gas strainer,sieve plate,slot mesh etc.
