High Opening Continuous Slot Vee Wire Water Well Screen Filter

High Opening Continuous Slot Vee Wire Water Well Screen Filter

Large Image :  High Opening Continuous Slot Vee Wire Water Well Screen Filter

Product Details:
Place of Origin: Anping , Hebei,China
Brand Name: HengYuan
Certification: ISO, CIQ, SGS, CE
Model Number: 29-1000mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiated price
Packaging Details: wooden boxes
Delivery Time: 7 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 1500 pcs/month
Detailed Product Description
Features: Non-clogging Name: Wedge Wire Screen
Material: Stainless Steel 304, 304L,316 Length: 10-4000mm
Diameter: 29-1200mm Technique: Point Welding
Application: Filteration Package: Wooden Boxes
Highlight:

johnson wedge wire screens

,

johnson filter screen

High Opening Continuous Slot Vee Wire Water Well Screen Filter
Product Specifications
Attribute Value
Name Wedge Wire Screen
Material Stainless steel 304, 304L, 316
Length 10-4000mm
Diameter 29-1200mm
Technique Point welding
Features Non-clogging
Application Filtration
Package Wooden boxes
Product Description

Customized Stainless Steel Well Screen, Industrial Welded Wedge Wire Screen

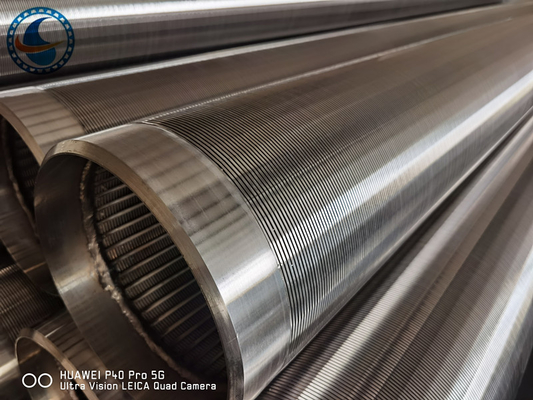

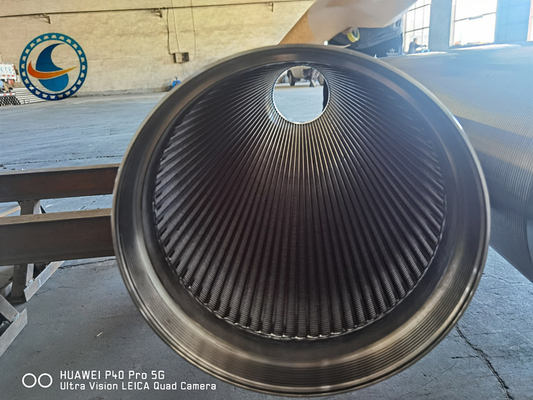

Wedge wire screen, also named Vee-wire screen pipe, continuous slot vee-wire screen tube, wire wrapped screen, wire wound screen, or water filter, is made up of Vee-shaped wrapped wire and round rod welded together at each intersection. It features accurate slot and high filtration precision.

  • Material: Stainless steel 202/304/304L/316/316L etc.
  • Opening/Slot: 0.05mm - 100mm
  • Max Length: 4m
  • End connection: Welded rings; Male/female threaded; Closed up; Flange and so on.
  • Diameter: 29-1200mm
  • Wire size: 1×2mm, 1.2×2mm, 1.5×2mm, 2×3mm, 2×3.5mm, 3×4.6mm, 3×5mm
Wedge Wire Johnson Screen Filter Specifications
Profile wire: Width(mm): 1.0, 1.2, 1.5, 2.0, 2.2, 3.0, 3.2
Height(mm): 2.0, 2.5, 3.5, 4.6, 5.0, 6.0
Support rods: Width(mm): 2.0, 3.0
Height(mm): 3.0, 4.6, 5.0, 6.0, 7.0
Round: From 2.50mm to 6.0mm
Slot size: 0.10, 0.15, 0.20, 0.25, 0.30...100mm (custom sizes available)
Material: Stainless steel 304, 304L, 316L, 321 etc.
Length: Up to 4 meters
Diameter: 29-1200mm

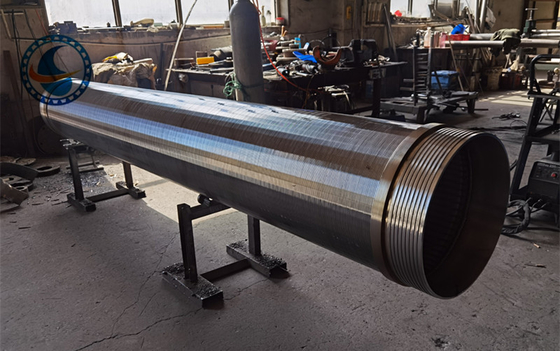

Screen ends: Plain beveled ends, male/female threaded, flange, close up
Other sizes available on request.
Key Advantages
  • Reduce energy consumption and increase water flow
  • Reduce erosion of entry surfaces and increase well life
  • Allow uniform and efficient well development
  • Reduce potential pump damage and maintenance costs
Quality Control
  • Certified with ISO 9001:2008
  • High-end production with excellent workmanship and service
  • All products carefully inspected by QC before delivery
Packaging Details
  • Plastic film winding followed by wooden cases
  • Custom packaging available upon request
Delivery Information
  • Common sizes in stock: Delivery within 1 week
  • Special sizes: Delivery time depends on quantity
  • Minimum order: Stock items - any quantity; Non-stock - 1 square meter
  • Payment terms: T/T, L/C, Paypal, West Union etc.
  • Trade terms: EXW or FOB Tianjin
High Opening Continuous Slot Vee Wire Water Well Screen Filter 0 High Opening Continuous Slot Vee Wire Water Well Screen Filter 1
