SS 304 Wedge Wire Water Wire Screens For Oil Wells

Large Image : SS 304 Wedge Wire Water Wire Screens For Oil Wells

Product Details:

Place of Origin:	Hebei,China
Brand Name:	Heng Yuan
Certification:	ISO9000
Model Number:	HY004

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	Negotiation
Packaging Details:	Moister-Barrier with each piece,110 pcs per 20 ft container
Delivery Time:	7-10 work days,according to the quantity
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000pcs/Month

Contact Now

Detailed Product Description

Material:	Stainless Steel	Grade:	304
Slot Size:	0.5 Mm	Diameter:	8 "
Length:	5800mm	End Connection:	Welded Rings
Package:	Woden Box,Container
Highlight:	slotted screen pipe , johnson stainless steel well screens

SS 304 Wedge Wire Water Screens For Oil Wells

Product Specifications

Attribute	Value
Material	Stainless steel
Grade	304
Slot size	0.5 mm
Diameter	8"
Length	5800mm
End connection	Welded rings
Package	Wooden box, Container

Product Description

Stainless Steel Wedge Wire V Wire Sand Control Screens 40mm O.D Screen Pipe

Jonson Vee wire screen is constructed by winding cold-rolled, approximately triangular wire around circular longitudinal rods. The wire is resistance-welded to the rods, creating rigid one-piece units with high strength-to-weight ratios. The continuous V-shaped slots provide maximum open area to reduce entrance velocity, increase hydraulic efficiency, and enhance development effectiveness.

Technical Specifications

Parameter	Value
Material	Stainless steel
Grade	304
O.D	40 mm
Size	1-1/2"
Slot size	0.1mm
Length	2.7 m
End connection	None
Wire size	63 #
Support rod	93 #
Wire shape	V shape

Standard Specifications

Size (inch)	O.D (mm)	Slot (mm)	Length (m)	Collapse Strength (bar)	Tensile Weight (ton)	Wrap Wire (mm)	Rods (mm)
3-1/2	88.9	1.0	3	>22	10.2	2.3*3.5	3.8MM/22
4-1/2	114.3	1.0	3	>28	11.5	2.3*3.5	3.8MM/22
6-5/8	168.3	0.75	5.8	>40	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	1.0	5.8	>33	12.8	2.3*3.5	3.8MM/32
6-5/8	168.3	0.63	5.8	>83	45	3.2*6.0	6.0MM*32
8-5/8	219.1	1.0	5.8	>34	21.9	2.3*3.5	3.8MM/48
8-5/8	219.1	1.0	5.8	>50	38.2	3.0*5.0	4.0MM/48
8-5/8	219.1	1.0	5.8	>60	46	3.2*6.0	5.0MM/48

Key Features

Continuous uninterrupted gap for smooth flow
V-shaped slots prevent clogging (smaller outside, larger inside)
Custom lengths available with one-piece molding
Resistance-welded joints for maximum durability

Customization Options

Materials: Stainless steel, carbon steel (galvanized or sprayed), or customer-specified
Slot sizes: 0.1mm-15mm to meet various requirements
Diameters: 2" to 20" (29mm-1000mm)
Lengths: Standard 2.9m or 5.85m, up to 6m
Connections: Groove, welded ring, or threaded

Applications

Oil production: heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal
Water injection, bi-modal sand, carbonates, thin pay
Horizontal, vertical, and deviated oil, gas, and water wells

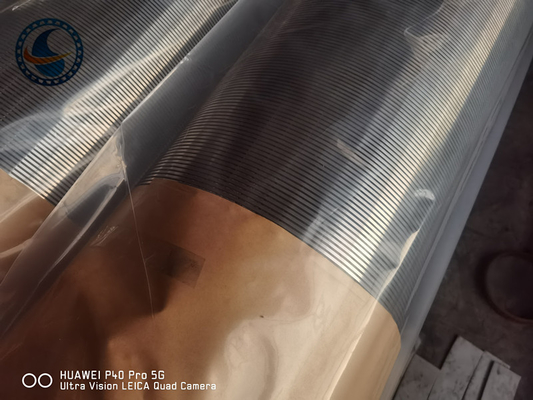

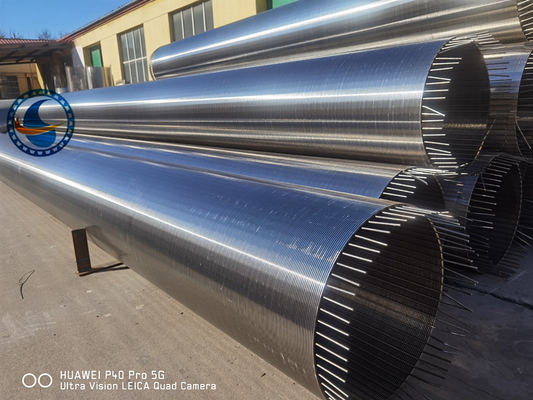

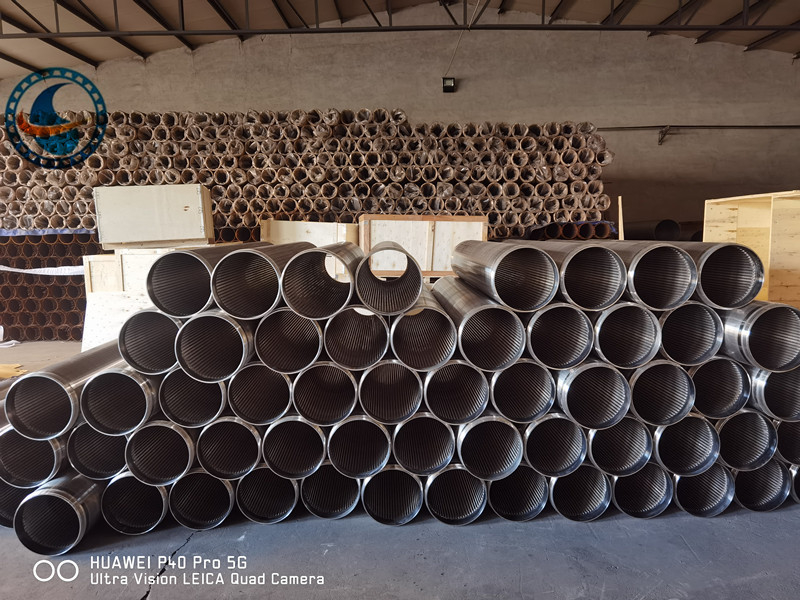

Product Image
